Grundfos 99525486 - CR 32-2 A-J-D-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99525486

Price:
Sale price$11,459.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 32-2 A-J-D-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713830511725
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code J
Connection DN 65
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 213TC
Frequency converter NONE
Gross weight 247.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code D
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 183.4 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 91.4-89.7 %
Motor efficiency at 3/4 load 90.9-90.7 %
Motor efficiency at full load 1 90.0-90.2 %
Motor standard NEMA
Motor type 132FA
Net weight 229.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.87
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 26
Rated flow 159 US gpm
Rated head 132.9 ft
Rated power - P2 7.5 kW
Rated speed 3480-3500 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 2
Standard NEMA
Starting current 680-900 %
Support bearing Graflon
Type 132FA
Type of connection JIS
Version A

Motor Curves

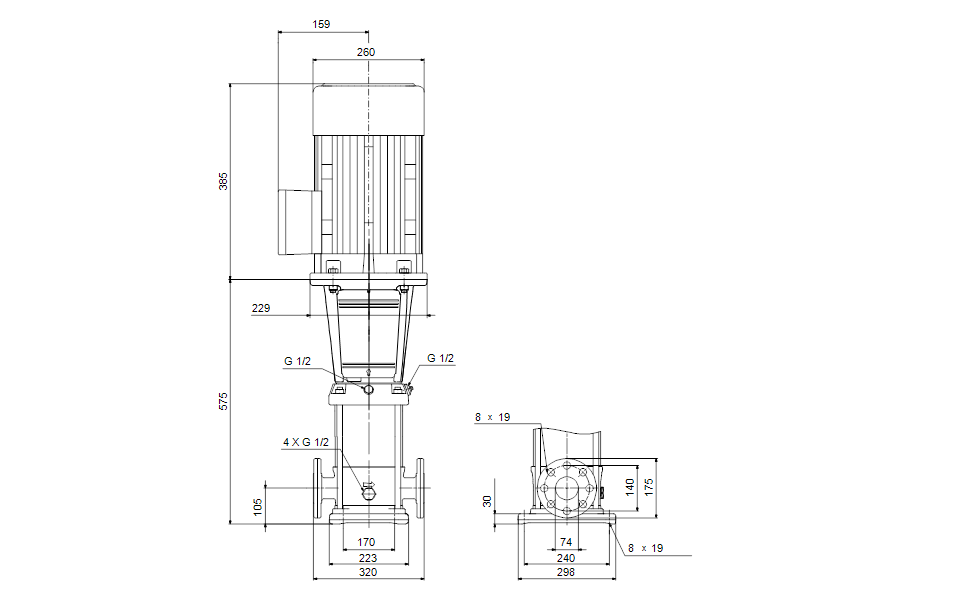

Dimensional Drawing

DWiring Diagram
