Grundfos 97669018 - CR 32-2 H-GB-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,791.84
GRUNDFOSSKU: 97669018

Price:
Sale price$3,731.16 Regular price$6,523.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97669018 - CR 32-2 H-GB-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97669018 - CR 32-2 H-GB-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This pump features a robust construction and advanced design, ensuring optimal performance and longevity. It is part of the CR series, known for its versatility and adaptability in various settings. The CR 32-2 model is specifically tailored for horizontal installations, providing a compact solution without compromising on power.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code GB
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 258.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 179.8 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 159.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 123 US gpm
Rated head 149.9 ft
Rubber V
Sales region USA
Shaft Product name:CR 32-2 H-GB-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

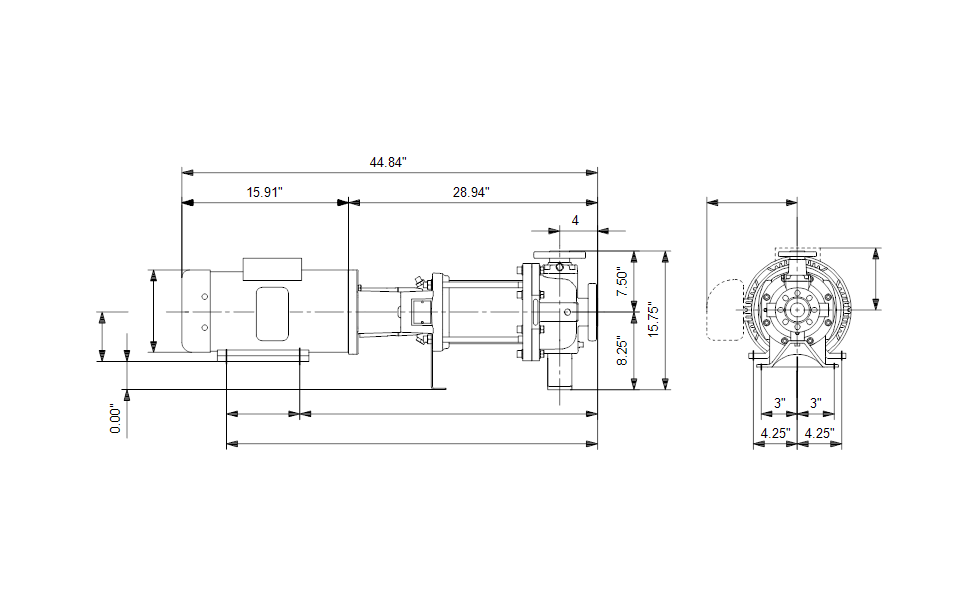

Dimensional Drawing
