Grundfos 92877171 - CR 32-2 A-J-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92877171

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92877171 - CR 32-2 A-J-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92877171 - CR 32-2 A-J-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CR 32-2 A-J-A-V-HQQV ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their exceptional performance and versatility.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120909700
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code J
Connection DN 65
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange size for motor 213TC
Frequency converter NONE
Gross weight 304.0 lb
IE efficiency IE3 90
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 183.4 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 0.895
Motor efficiency at 3/4 load 0.902
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type WEG
Net weight 286.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.91
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 23.0/11.5 A
Rated flow 159 US gpm
Rated head 132.9 ft
Rated power - P2 7.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 2
Standard NEMA
Starting current 7.5
Support bearing Graflon
Type WEG
Type of connection JIS
Version A

Motor Curves

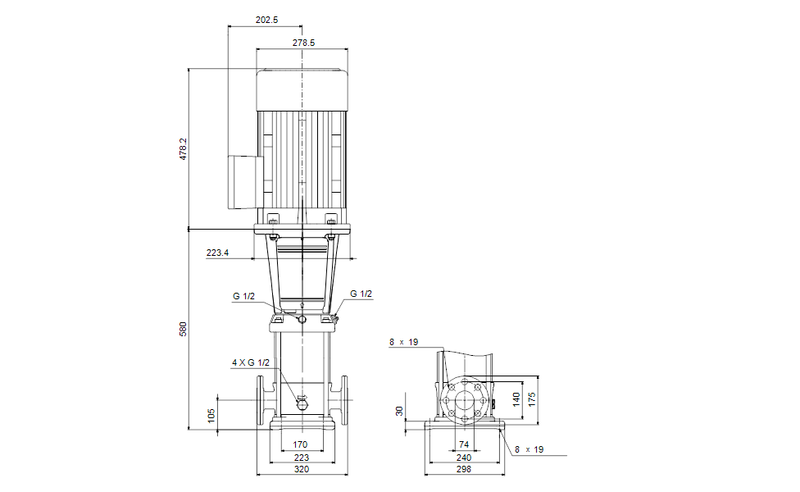

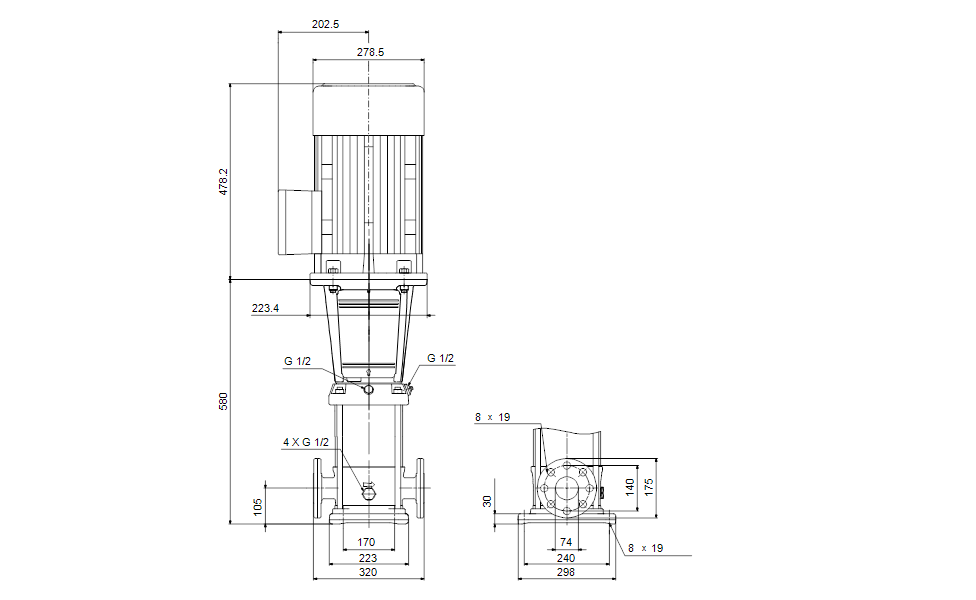

Dimensional Drawing

DWiring Diagram
