Grundfos 98692537 - CR 32-2-2 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98692537

Price:
Sale price$10,708.33
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98692537 is a CR 32-2-2 multistage vertical centrifugal pump intended for industrial and commercial systems where compact, high-pressure in-line pumping is required. Technicians and service teams use this unit for routine maintenance and system upgrades.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical, in-line multistage centrifugal configuration for high pressure
  • Compact design offers reliable performance and easier installation during service

Applications

Suitable for boiler feed, high-pressure water transfer, pressure boosting, and other in-line multistage pumping duties in industrial and commercial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98692537

EAN 5711499732475
Actual impeller diameter 4.66 in
Approvals EAC
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 257.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 149.9 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor efficiency at 1/2 load 89.9-87.9 %
Motor efficiency at 3/4 load 90.3-89.9 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard IEC
Motor type 132DA
Net weight 207.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 5.5 kW
Power factor 1 0.90-0.80
Pressure rating for connection PN 40
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3526 rpm
Pump version A
Pumped liquid Water
Rated current 18
Rated flow 159 US gpm
Rated head 109.9 ft
Rated power - P2 5.5 kW
Rated speed 3510-3550 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 2
Standard IEC
Starting current 1020-1480 %
Support bearing Graflon
Type 132DA
Type of connection DIN
Version A

Motor Curves

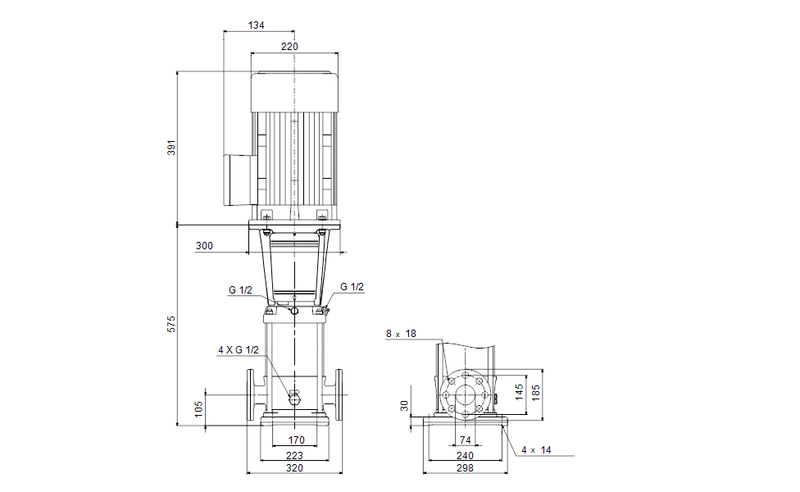

Dimensional Drawing
