Grundfos 97534972 - CR 32-2-2 H-G22-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,717.80
GRUNDFOSSKU: 97534972

Price:
Sale price$3,632.20 Regular price$6,350.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97534972 - CR 32-2-2 H-G22-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types. The CR 32-2-2 H-G22-A-E-HQQE is perfect for those seeking a dependable solution for their pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos pumps and discover the perfect solution for your needs today!

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 252.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 248°F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Maximum head 140.4 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 152.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 123 US gpm
Rated head 125 ft
Rubber E
Sales region USA
Shaft Product name:CR 32-2-2 H-G22-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

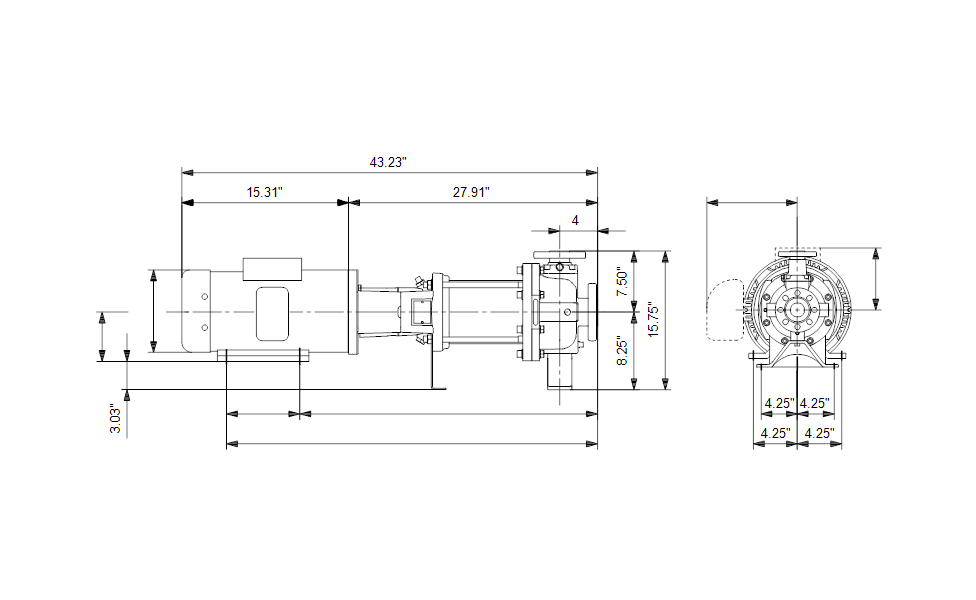

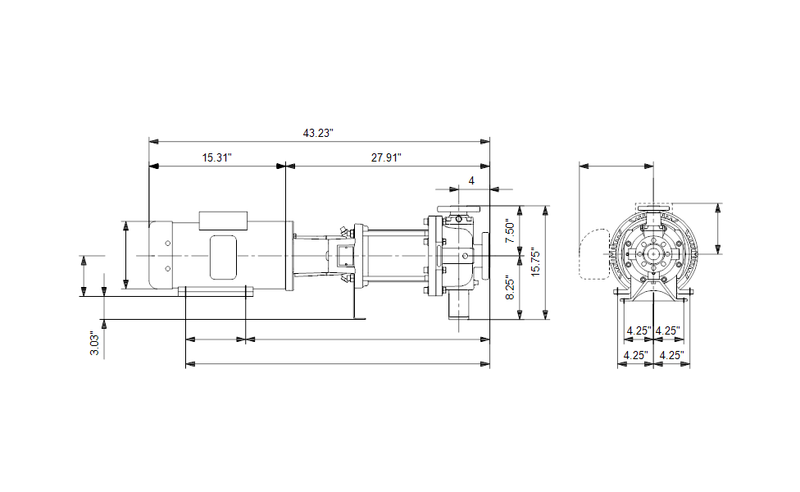

Dimensional Drawing
