Grundfos 97534637 - CR 32-2-2 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,724.22
GRUNDFOSSKU: 97534637

Price:
Sale price$3,640.78 Regular price$6,365.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97534637 - CR 32-2-2 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types. The CR 32-2-2 H-G05-A-V-HQQV is part of a comprehensive range of pumps that includes various configurations to meet your specific needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 97534637. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 312.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 140.4 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 151.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 123 US gpm
Rated head 125 ft
Rubber V
Sales region USA
Shaft Product name:CR 32-2-2 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

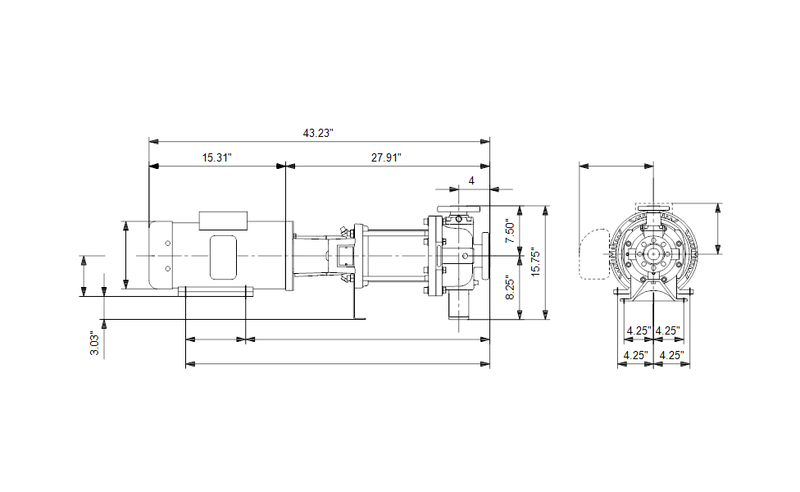

Dimensional Drawing
