Grundfos 97534582 - CR 32-2-1 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,701.96
GRUNDFOSSKU: 97534582

Price:
Sale price$3,611.04 Regular price$6,313.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97534582 - CR 32-2-1 H-GA-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97534582 - CR 32-2-1 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model is part of the CR series, known for its robust construction and versatility. It is suitable for both horizontal and vertical installations, providing flexibility in system design. The CR 32-2-1 features advanced technology that ensures optimal energy efficiency and minimal maintenance, making it a cost-effective solution for your pumping needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 97534582. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 242.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 160.4 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 142.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 123 US gpm
Rated head 137.1 ft
Rubber V
Sales region USA
Shaft Product name:CR 32-2-1 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

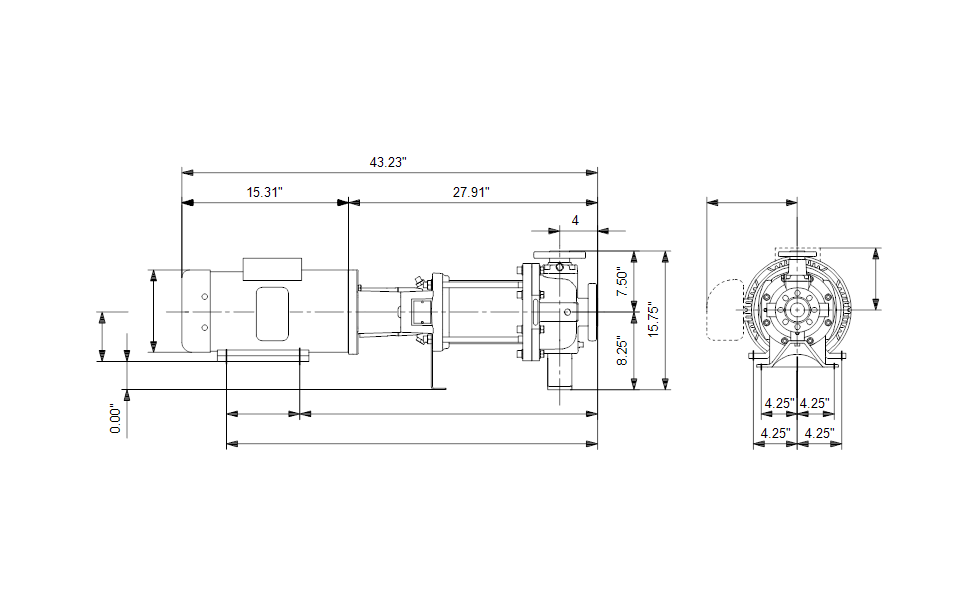

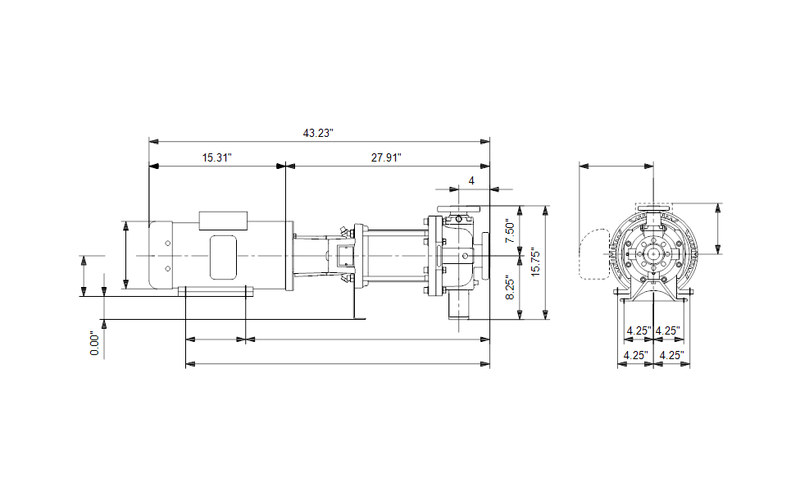

Dimensional Drawing
