Grundfos 92733898 - CR 32-12-2 K-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92733898 - CR 32-12-2 K-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 32-12-2 K-G-A-E-HQQE model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it suitable for both commercial and industrial settings.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118833383
Actual impeller diameter 4.66 in
Approvals EAC
Approvals for drinking water ACS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF300
Frequency converter NONE
Gross weight 592.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Mains frequency 50 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 741.8 ft
Maximum operating pressure 30 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at 1/2 load 94.4-94.1 %
Motor efficiency at 3/4 load 93.7-94.0 %
Motor efficiency at full load 1 92.7-92.7 %
Motor standard IEC
Motor type 180BA
Net weight 493.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 22 kW
Power factor 1 0.90-0.90
Pressure rating for connection PN 40
Pressure sensor N
Pump 22 kW
Pump speed on which pump data are based 2947 rpm
Pump version K
Pumped liquid Water
Rated current 68
Rated flow 132 US gpm
Rated head 582.4 ft
Rated power - P2 22 kW
Rated speed 2950 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 12
Standard IEC
Starting current 8.3
Support bearing Graflon
Type 180BA
Type of connection ANSI
Version K

Motor Curves

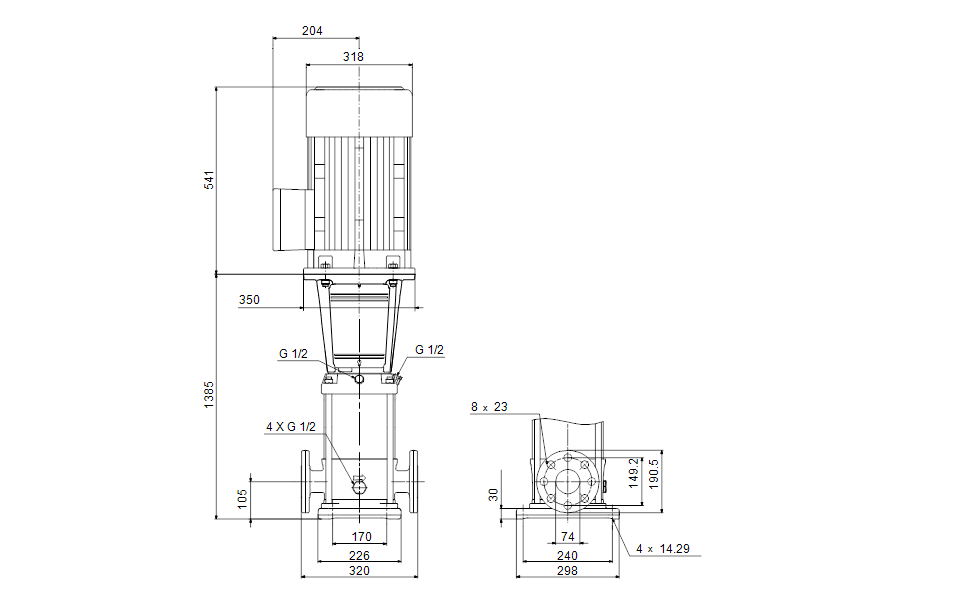

Dimensional Drawing

DWiring Diagram
