Grundfos 97534995 - CR 32-11-2 H-G22-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $8,381.52
GRUNDFOSSKU: 97534995

Price:
Sale price$11,201.48 Regular price$19,583.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97534995 - CR 32-11-2 H-G22-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97534995 - CR 32-11-2 H-G22-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for boosting pressure and transferring fluids in demanding environments.

This pump is part of the CR series, known for its robust construction and versatility. It is suitable for various applications, including water supply, irrigation, and industrial processes. The CR 32-11-2 model features a compact design, allowing for easy installation in tight spaces while delivering exceptional performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97534995. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 355.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 248°F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Maximum head 934.8 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3525rpm
Net weight 236.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 136 US gpm
Rated head 745.8 ft
Rubber E
Sales region USA
Shaft Product name:CR 32-11-2 H-G22-A-E-HQQE
Shaft seal HQQE
Stages 11
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

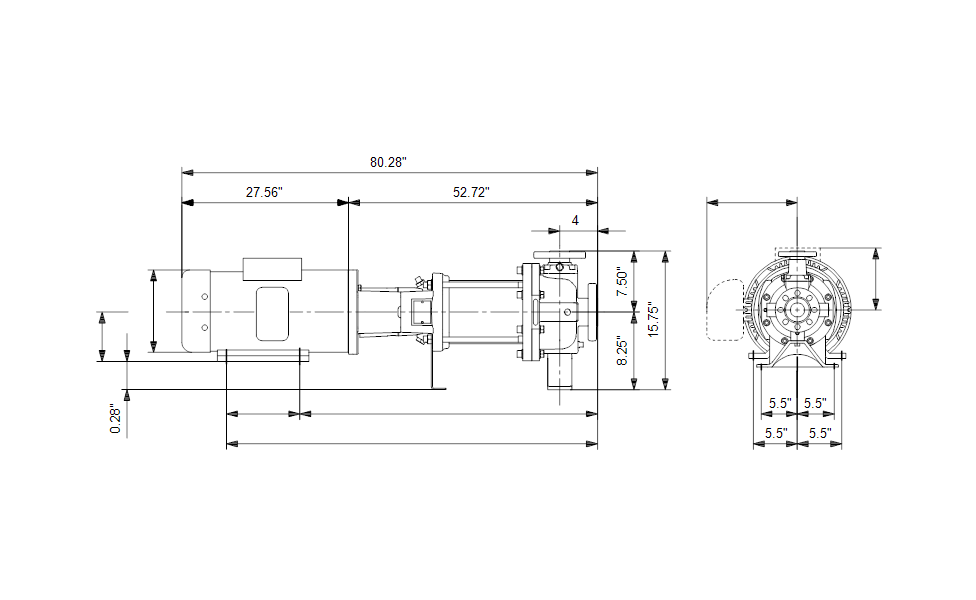

Dimensional Drawing
