Grundfos 97655682 - CR 32-10 H-G50-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $13,387.41
GRUNDFOSSKU: 97655682

Price:
Sale price$17,891.59 Regular price$31,279.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97655682 - CR 32-10 H-G50-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97655682 - CR 32-10 H-G50-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is part of the CR series, known for its versatility and efficiency in handling various fluids. The CR 32-10 H-G50-A-E-HQQE is suitable for both horizontal and vertical installations, providing flexibility in system design.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G50
Connection PN 40
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 853.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 32-10 H-G50-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
Liquid max temp 248°F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 891.1 ft
Maximum operating pressure 435.11 psi
Model B
Motor 284TC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
n rpm F
Net weight 656.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 40 HP
Phase 3
Power (P2) required by pump 40 HP
Pressure rating for connection PN 40
Pressure sensor N
Pump 40 HP
Pump version H
Rated current 90/45 A
Rated flow 136 US gpm
Rated head 709.4 ft
Rated power - P2 40 HP
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 32-10 H-G50-A-E-HQQE
Shaft seal HQQE
Stages 10
Standard NEMA
Support bearing Graflon
Type BALDOR
Version H

Motor Curves

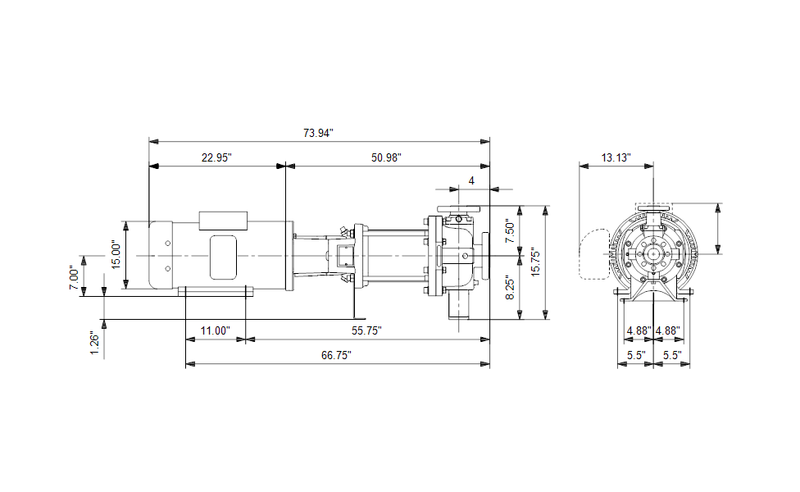

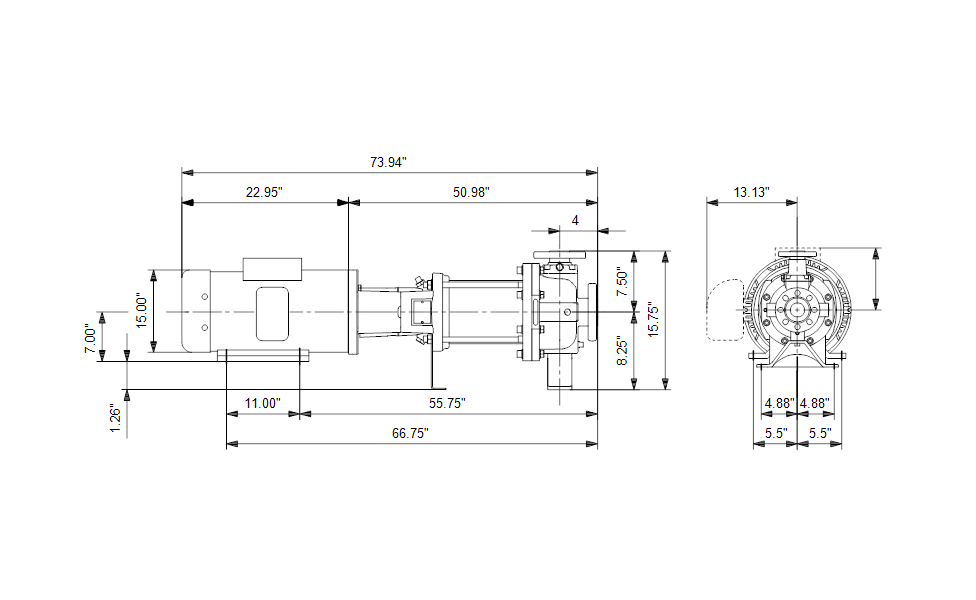

Dimensional Drawing

DWiring Diagram
