Grundfos 99994479 - CR 32-1 E-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99994479

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99994479 - CR 32-1 E-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99994479 - CR 32-1 E-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 32-1 E-G-A-E-HQQE ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, including HVAC systems, water treatment, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715115261295
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 222.0 lb
IE efficiency IE3 89.5%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 95.15 ft
Maximum operating pressure 16 bar
Model B
Motor 182TC
Motor efficiency at full load 1 0.895
Motor standard NEMA
Motor type BALDOR
Net weight 204.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version E
Pumped liquid Water
Rated current 12.2-11.2/5.6 A
Rated flow 159 US gpm
Rated head 67.59 ft
Rated power - P2 3.7 kW
Rated speed 3500 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 1
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version E

Motor Curves

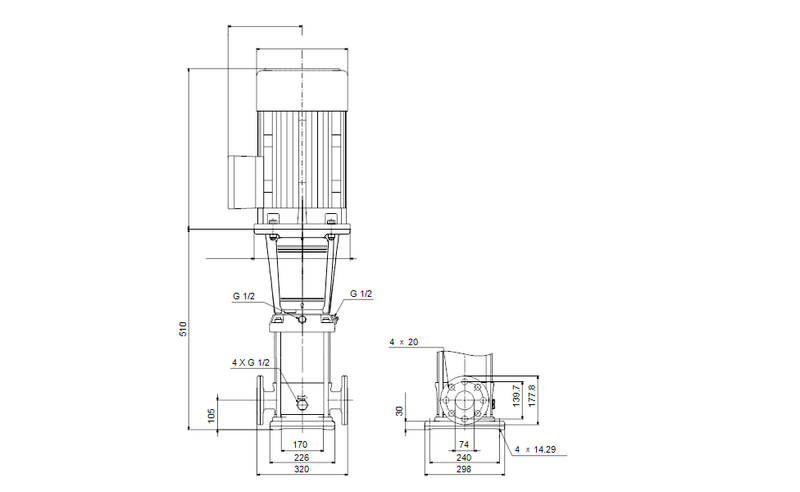

Dimensional Drawing

DWiring Diagram
