Grundfos 92853245 - CR 3-6 A-BN-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92853245

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92853245 - CR 3-6 A-BN-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its advanced design, the CR 3-6 A-BN-A-E-HQQE delivers exceptional performance, making it suitable for both commercial and industrial use.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715120549081
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code BN
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 43.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 187 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 32.6 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3484 rpm
Pump version A
Rated flow 15.4 US gpm
Rated head 137.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 6
Standard NEMA
Type of connection Oval / NPT(F)
Version A

Motor Curves

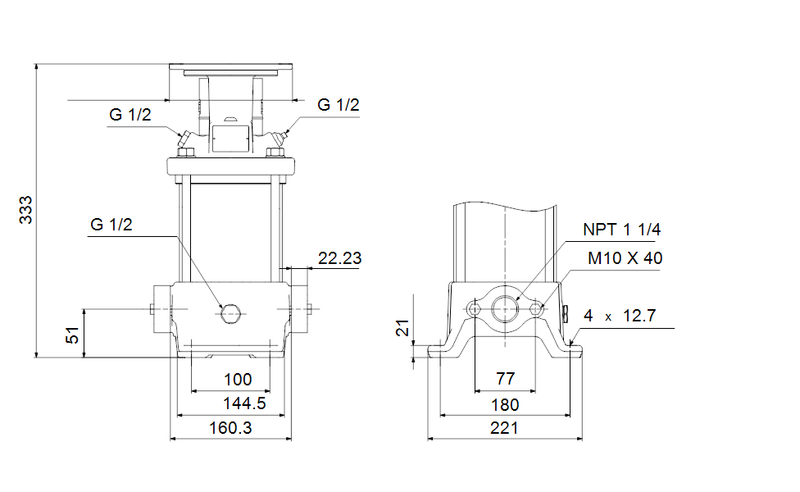

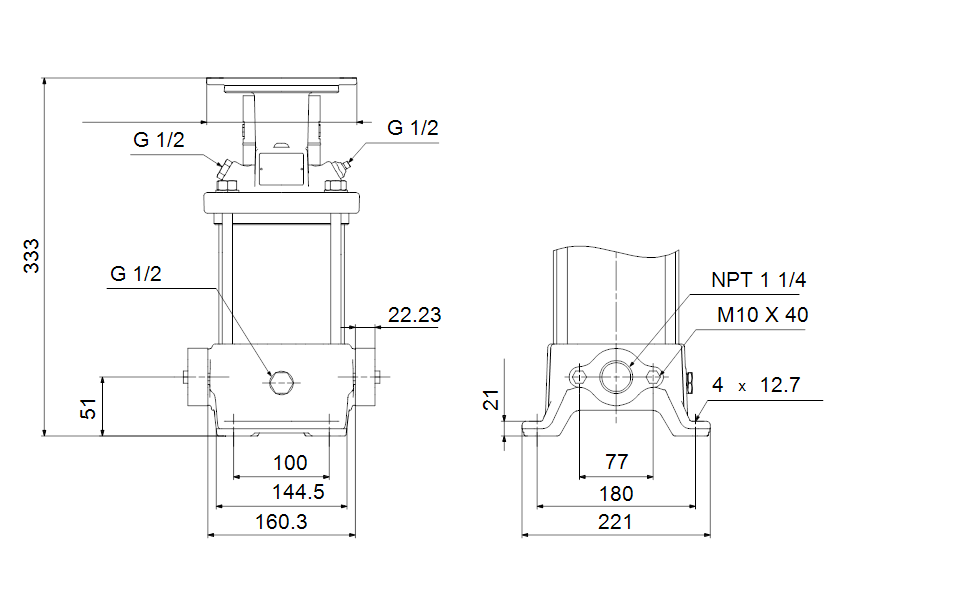

Dimensional Drawing
