Grundfos 97772362 - CR 3-5 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97772362

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97772362 - CR 3-5 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its advanced design, the CR 3-5 A-FGJ-A-E-HQQE delivers exceptional performance, making it suitable for both commercial and industrial use.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710624125328
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 250 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 26.5 kg
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum ambient temperature 60 °C
Maximum head 32.3 m
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor efficiency at 1/2 load 75.5-71.5 %
Motor efficiency at 3/4 load 79.0-76.5 %
Motor efficiency at full load 1 73.8-73.8 %
Motor standard IEC
Motor type 71A
Net weight 23.8 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.80-0.70
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 2873 rpm
Pump version A
Pumped liquid Water
Rated current 0.76 A
Rated flow 3 m³/h
Rated head 23.4 m
Rated power - P2 0.37 kW
Rated speed 2850-2880 rpm
Rated voltage 3 x 500-550D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 5
Standard IEC
Starting current 490-530 %
Type 71A
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

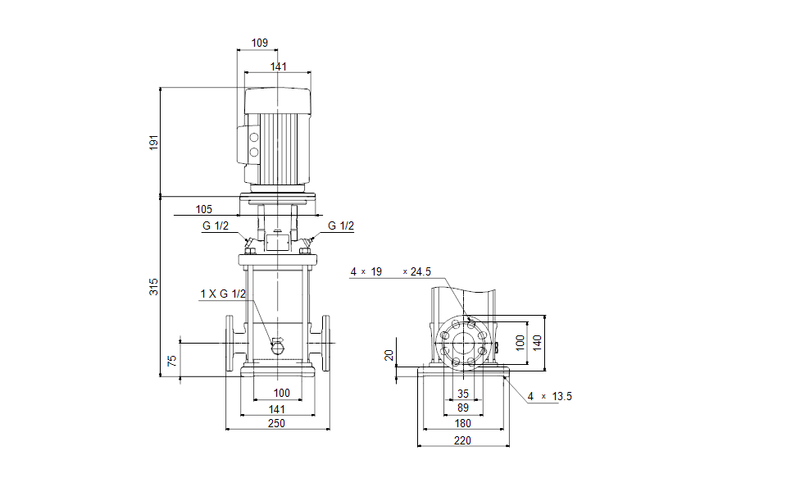

Dimensional Drawing

DWiring Diagram
