Grundfos 96517810 - CR 3-5 A-A-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96517810

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

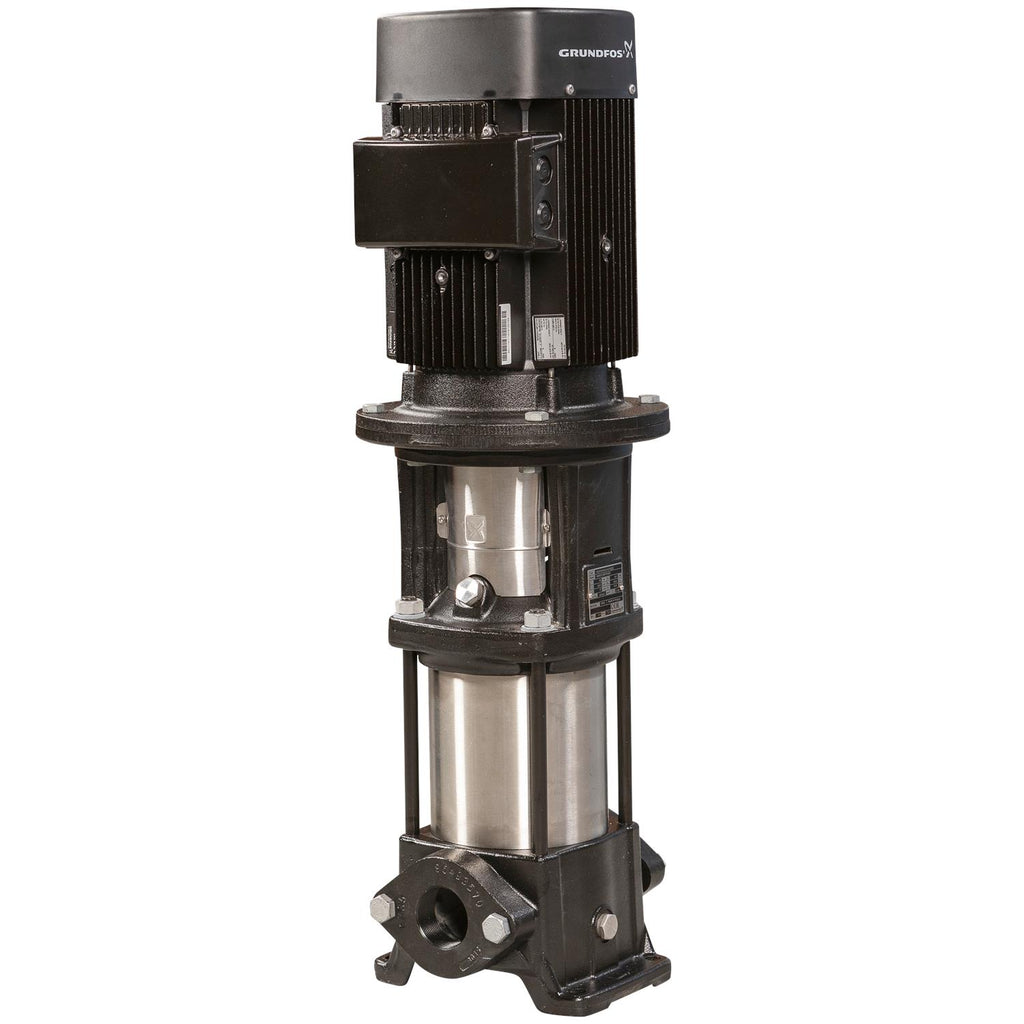

CR 3-5 A-A-A-V-HQQV · Vertical Multistage Centrifugal Pump
CR1HP200-220D/346-380YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 96517810 (CR 3-5 A-A-A-V-HQQV) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 15.4US gpm at 106.3ft. Rated 200-220D/346-380YV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
1HP
Voltage
200-220D/346-380YV
Phase
3.0-Phase
Max Flow
15.4US gpm
Max Head
106.3ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 3-5 A-A-A-V-HQQV
Series: CR
Model Code: CR 3-5 A-A-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQV
Flange Rating: PN 16
Technical Specifications
Model Number 96517810
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 1HP
Voltage 200-220D/346-380YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3380-3450rpm
Pump Speed 3401rpm
Full Load Current 3,2-2,95/1,82-1,7A
Motor Type 80A
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 77.0-77.0%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 15.4US gpm
Nominal Head 106.3ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Inlet Connection 1inch
Outlet Connection 1inch
Pipe Pressure Rating PN 16
Pipe Standard Oval / Rp
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQV
Approvals / Certifications CE, EAC, UKCA, SEPRO
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 200-220D/346-380YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 3-5 A-A-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396770406
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 53.9 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 147 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT100
Motor efficiency at 1/2 load 83-80.4 %
Motor efficiency at 3/4 load 83.6-83.2 %
Motor efficiency at full load 1 77.0-77.0 %
Motor standard IEC
Motor type 80A
Net weight 47.8 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.84-0.77
Pressure rating for connection PN 16
Product family CR 3
Pump 0.75 kW
Pump speed on which pump data are based 3401 rpm
Pump version A
Pumped liquid Water
Rated current 3
Rated flow 15.4 US gpm
Rated head 106.3 ft
Rated power - P2 0.75 kW
Rated speed 3380-3450 rpm
Rated voltage 3 x 200-220D/346-380Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 5
Standard IEC
Starting current 630-800 %
Terminal box position 6
Type 80A
Type of connection Oval / Rp
Version A

Motor Curves

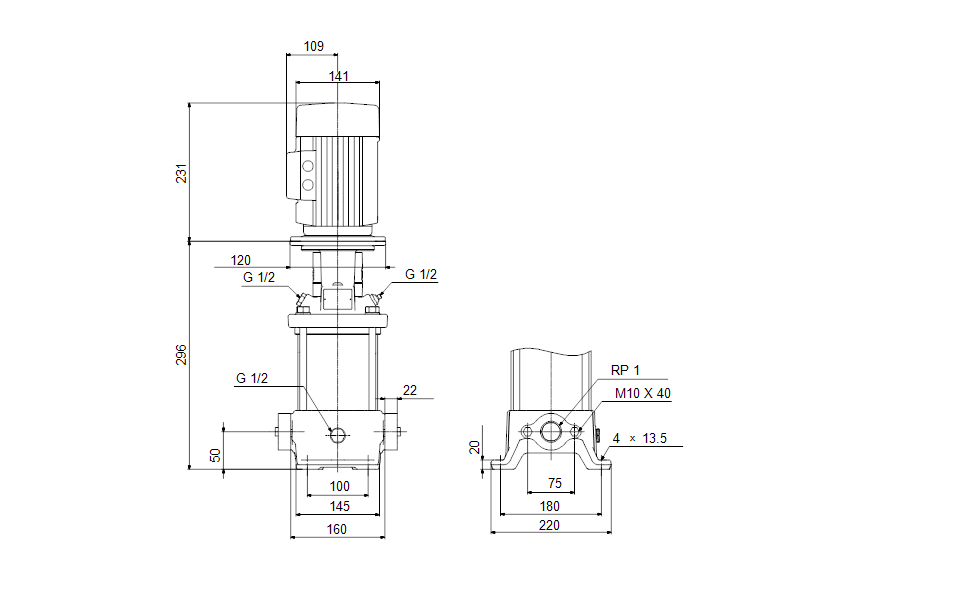

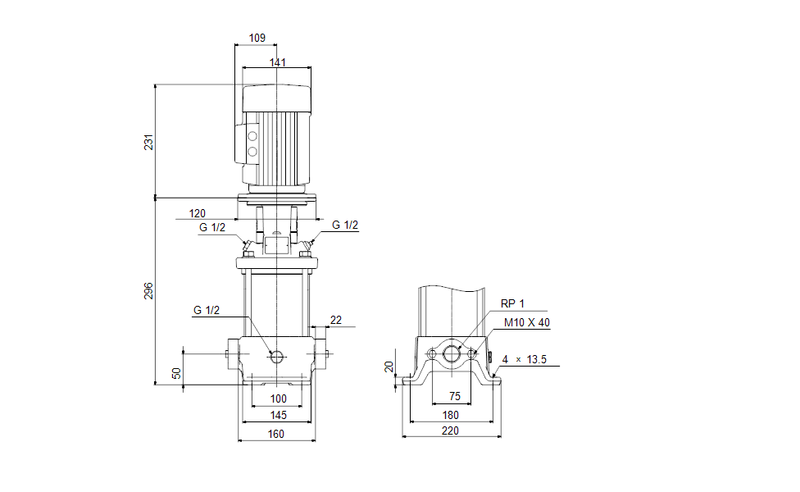

Dimensional Drawing

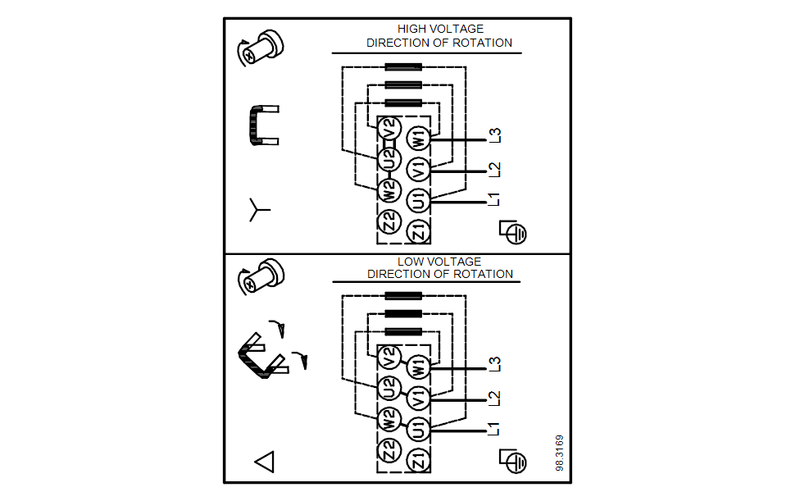

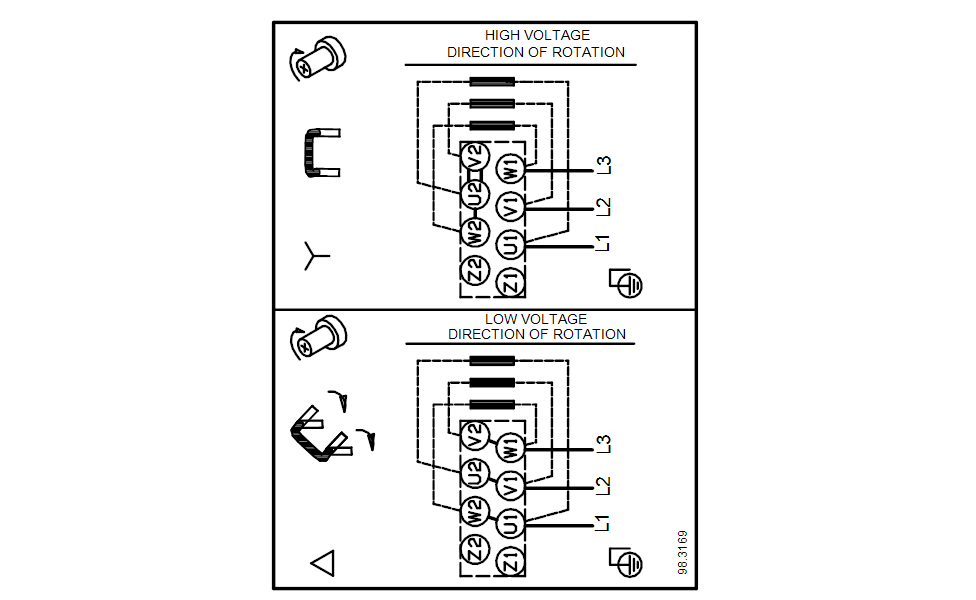

DWiring Diagram
