Grundfos 92873065 - CR 3-5 B-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92873065

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92873065 - CR 3-5 B-B-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92873065 - CR 3-5 B-B-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and other demanding tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 3-5 model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for both commercial and industrial environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help you find the perfect solution.

EAN 5715120841789
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter NONE
Gross weight 64.0 lb
IE efficiency IE3 78
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 39.04 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.74
Motor efficiency at 3/4 load 0.77
Motor efficiency at full load 1 0.785
Motor standard NEMA
Motor type WEG
Net weight 53.0 lb
Number of poles 4
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.76
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 1700 rpm
Pump version B
Pumped liquid Water
Rated current 1.56/0.78 A
Rated flow 7.93 US gpm
Rated head 29.2 ft
Rated power - P2 0.37 kW
Rated speed 1730 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 5
Standard NEMA
Starting current 6.4
Type WEG
Type of connection Oval / NPT(F)
Version B

Motor Curves

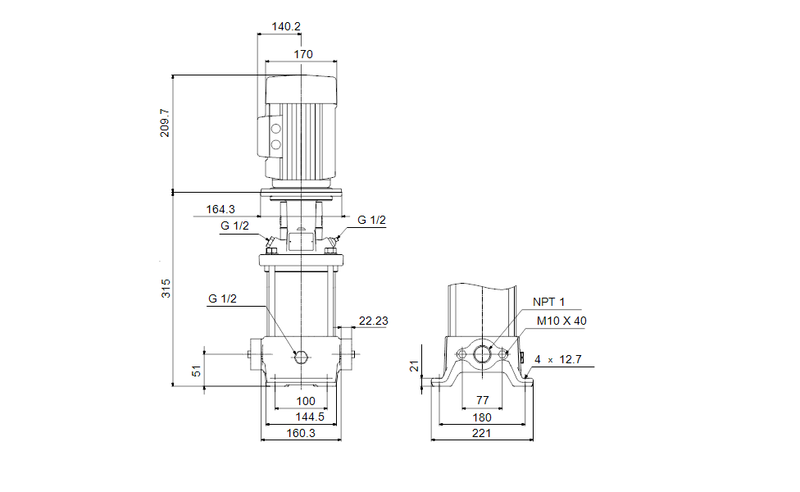

Dimensional Drawing

DWiring Diagram
