Grundfos 99969427 - CR 3-3 B-FGJ-A-V-HQBV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99969427

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99969427 - CR 3-3 B-FGJ-A-V-HQBV Vertical Multistage Centrifugal Pump

The Grundfos 99969427 - CR 3-3 B-FGJ-A-V-HQBV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CR 3-3 B-FGJ-A-V-HQBV ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their exceptional performance and versatility.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715114906524
Approvals CURUS
Built-in motor protection PTO
Code for rubber V
Code for shaft seal HQBV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 77.6 lb
IE efficiency IE3 77%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range 32 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 93.51 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.77
Motor standard NEMA
Motor type BALDOR
Net weight 66.6 lb
Number of poles 2
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3485 rpm
Pump version B
Pumped liquid Water
Rated current 2.9-3
Rated flow 15.4 US gpm
Rated head 67.26 ft
Rated power - P2 0.75 kW
Rated speed 3450 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard NEMA
Type BALDOR
Type of connection DIN / ANSI / JIS
Version B

Motor Curves

Dimensional Drawing

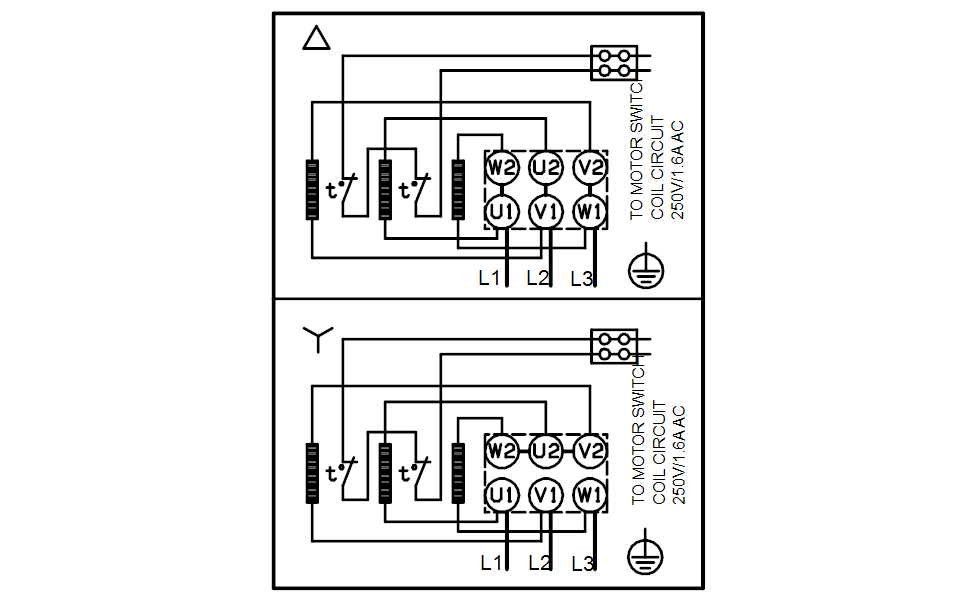

DWiring Diagram
