Grundfos 96083127 - CR 3-3 A-B-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

This item ships free!
GRUNDFOSSKU: 96083127

Price:
Sale price$3,212.50
or Call for most up to date lead times. (781) 281-8905

Description

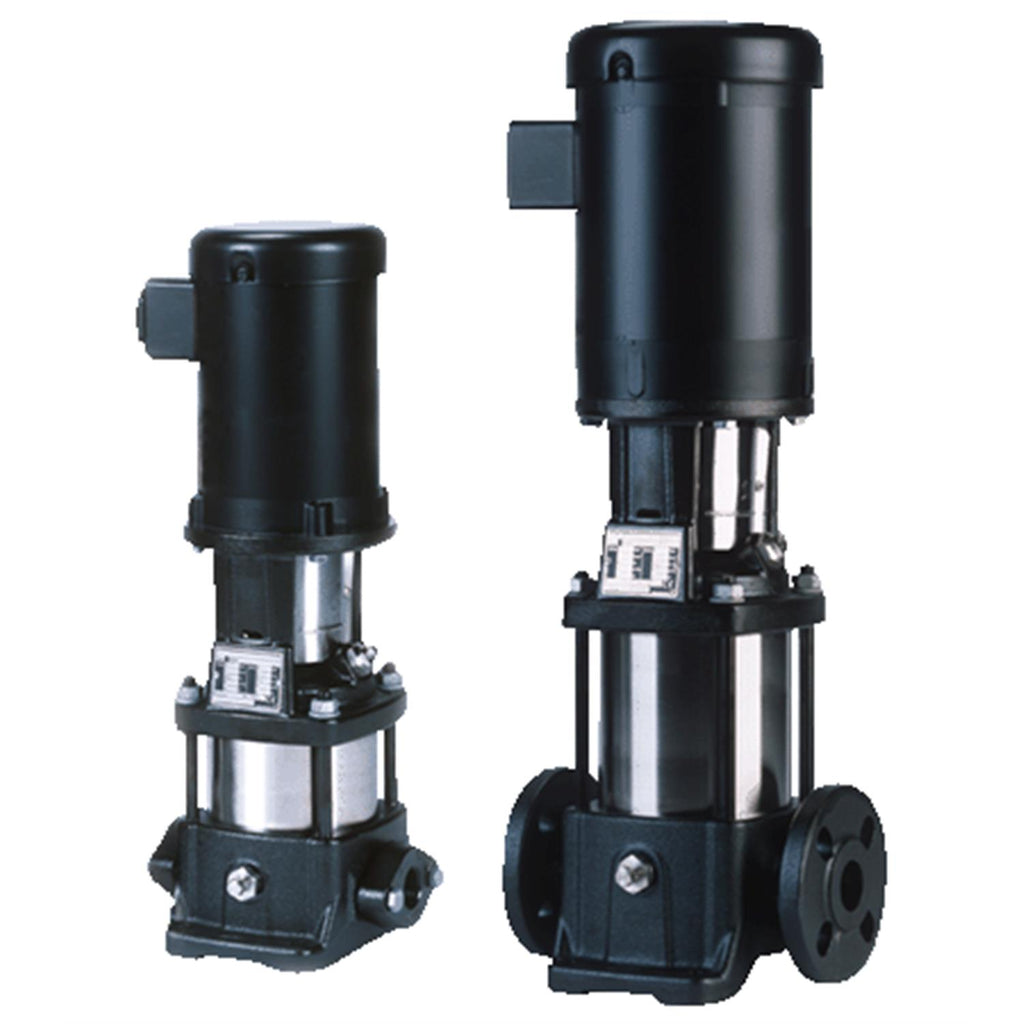

CR 3-3 A-B-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

EAN 5700395182958
Applications Industrial applications
Density 62.29 lb/ft³
Gross weight 63.4 lb
Liquid temperature range -4 .. 194 °F
Material Pricing Group 30
Max pressure at stated temp 232 psi / 194 °F
Max. capacity 2 ,
Maximum ambient temperature 104 °F
Maximum head 92.2 ft
Net weight 52.4 lb
Product family CR 3
Rated flow 15.4 US gpm
Rated head 67.26 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F

Motor Curves

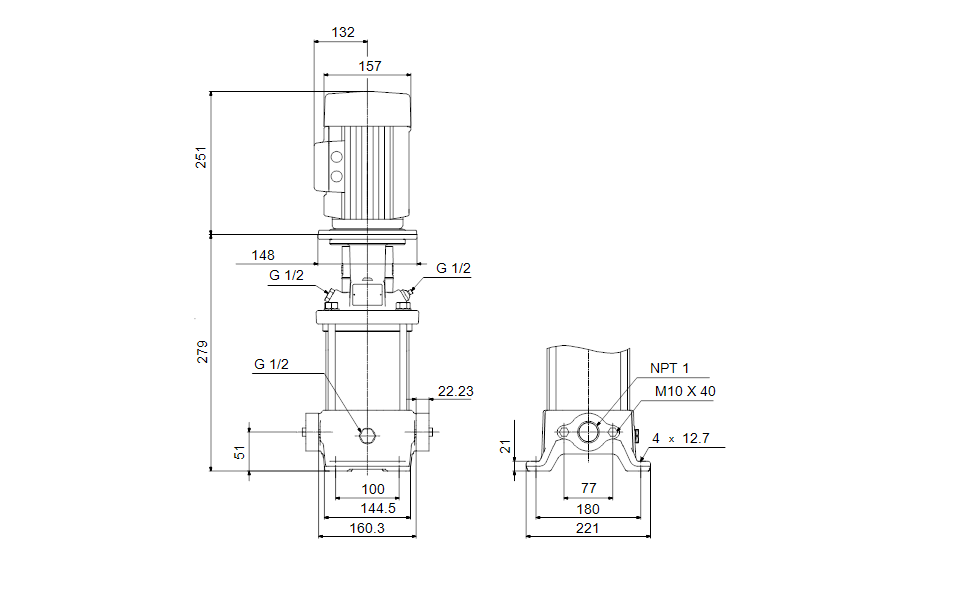

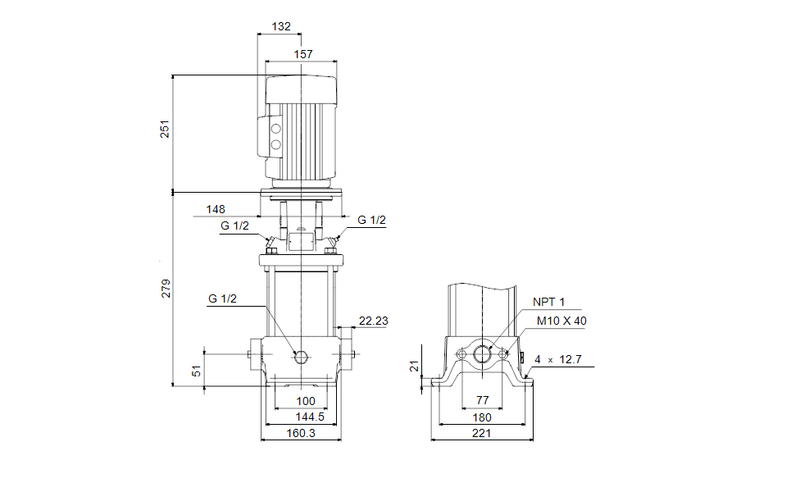

Dimensional Drawing

DWiring Diagram
