Grundfos 92848232 - CR 3-3 KP-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92848232

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92848232 - CR 3-3 KP-B-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92848232 - CR 3-3 KP-B-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and other demanding tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 3-3 KP-B-A-E-HQQE model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for applications where consistent performance is crucial.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120472143
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter NONE
Gross weight 62.0 lb
IE efficiency IE3 74%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 97.45 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.68
Motor efficiency at 3/4 load 0.72
Motor efficiency at full load 1 0.74
Motor standard NEMA
Motor type WEG
Net weight 51.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.8
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3485 rpm
Pump version KP
Pumped liquid Water
Rated current 1.57/0.78 A
Rated flow 15.4 US gpm
Rated head 72.18 ft
Rated power - P2 0.37 kW
Rated speed 3435 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 3
Standard NEMA
Starting current 7.7
Type WEG
Type of connection Oval / NPT(F)
Version KP

Motor Curves

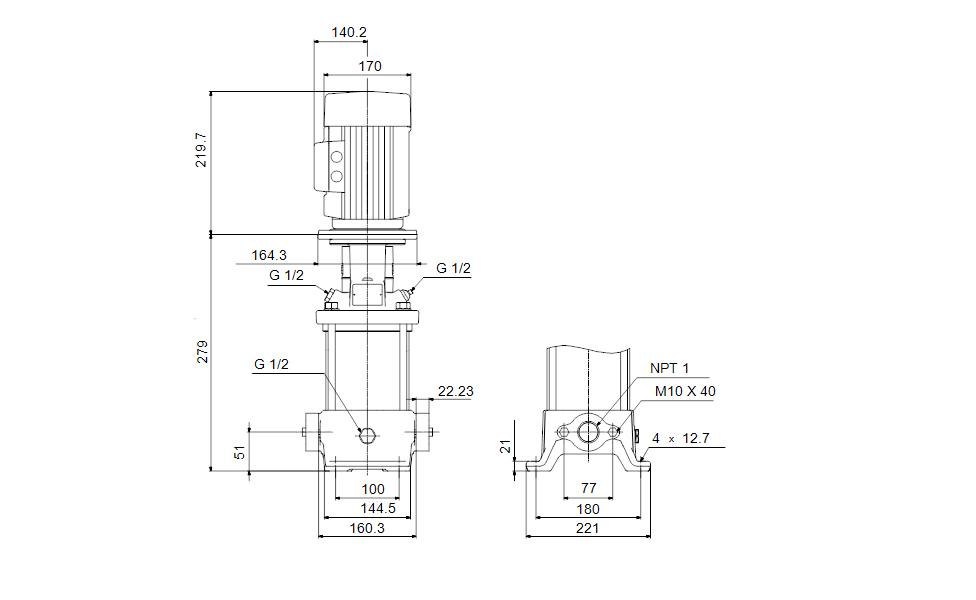

Dimensional Drawing

DWiring Diagram
