Grundfos 98916383 - CR 3-27 BK-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98916383

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98916383 CR 3-27 BK-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial systems, suitable for users needing compact high-pressure in-line pumping solutions.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical multistage, in-line centrifugal design for space-saving installations
  • Delivers reliable high-pressure performance for boosting and circulation needs

Applications

Common uses include water boosting, HVAC circulation, pressure boosting in commercial buildings, and other industrial fluid transfer duties where a vertical multistage centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98916383

EAN 5712603530673
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 250 lb
Flange size for motor FT130
Frequency converter NONE
Gross weight 154.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 50 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 587.3 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 85.2-88.1 %
Motor efficiency at 3/4 load 88.6-88.2 %
Motor efficiency at full load 1 88.1-88.1 %
Motor standard IEC
Motor type 112CA
Net weight 142.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.87-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2899 rpm
Pump version BK
Pumped liquid Water
Rated current 13.6/7.90 A
Rated flow 13.2 US gpm
Rated head 429.8 ft
Rated power - P2 4 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 27
Standard IEC
Starting current 1000-1110 %
Type 112CA
Type of connection DIN / ANSI / JIS
Version BK

Motor Curves

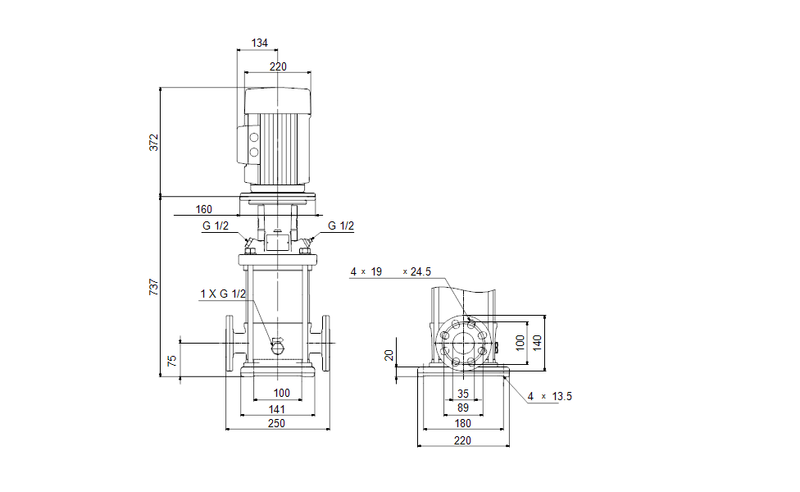

Dimensional Drawing
