Grundfos 96978052 - CR 3-25 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,083.74
GRUNDFOSSKU: 96978052

Price:
Sale price$4,121.26 Regular price$7,205.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96978052 - CR 3-25 H-GA-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 96978052 - CR 3-25 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This pump features a robust construction and advanced design, ensuring optimal performance and longevity. It is part of the CR series, known for its versatility and adaptability in various settings. The CR 3-25 model is specifically designed to handle a wide range of flow rates and pressures, making it suitable for both commercial and industrial use.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CURUS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 249.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 3-25 H-GA-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 785.8 ft
Maximum operating pressure 362.59 psi
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
n rpm F
Net weight 150.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 5.5 HP
Phase 3
Power (P2) required by pump 5.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 HP
Pump version H
Rated current 14,1-13,1/7,29 A
Rated flow 15.4 US gpm
Rated head 588.9 ft
Rated power - P2 5.5 HP
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CR 3-25 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 25
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Version H

Motor Curves

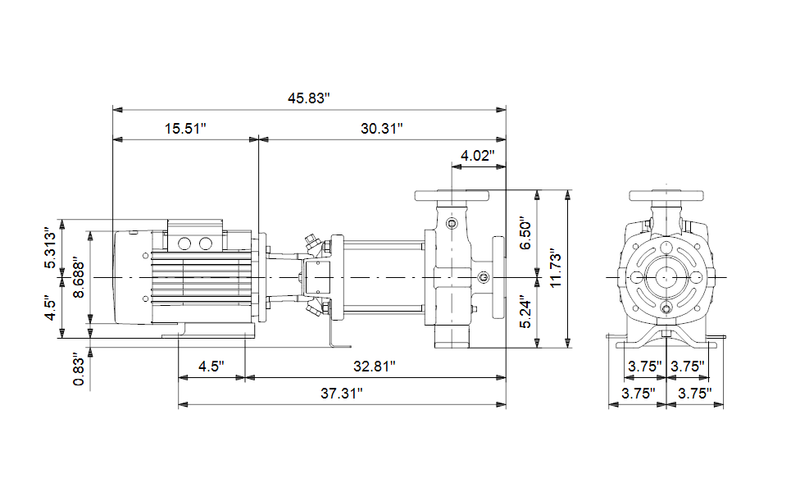

Dimensional Drawing

DWiring Diagram
