Grundfos 96083269 - CR 3-25 | Multistage | SelfPriming | Centrifugal | Vertical

GRUNDFOSSKU: 96083269

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

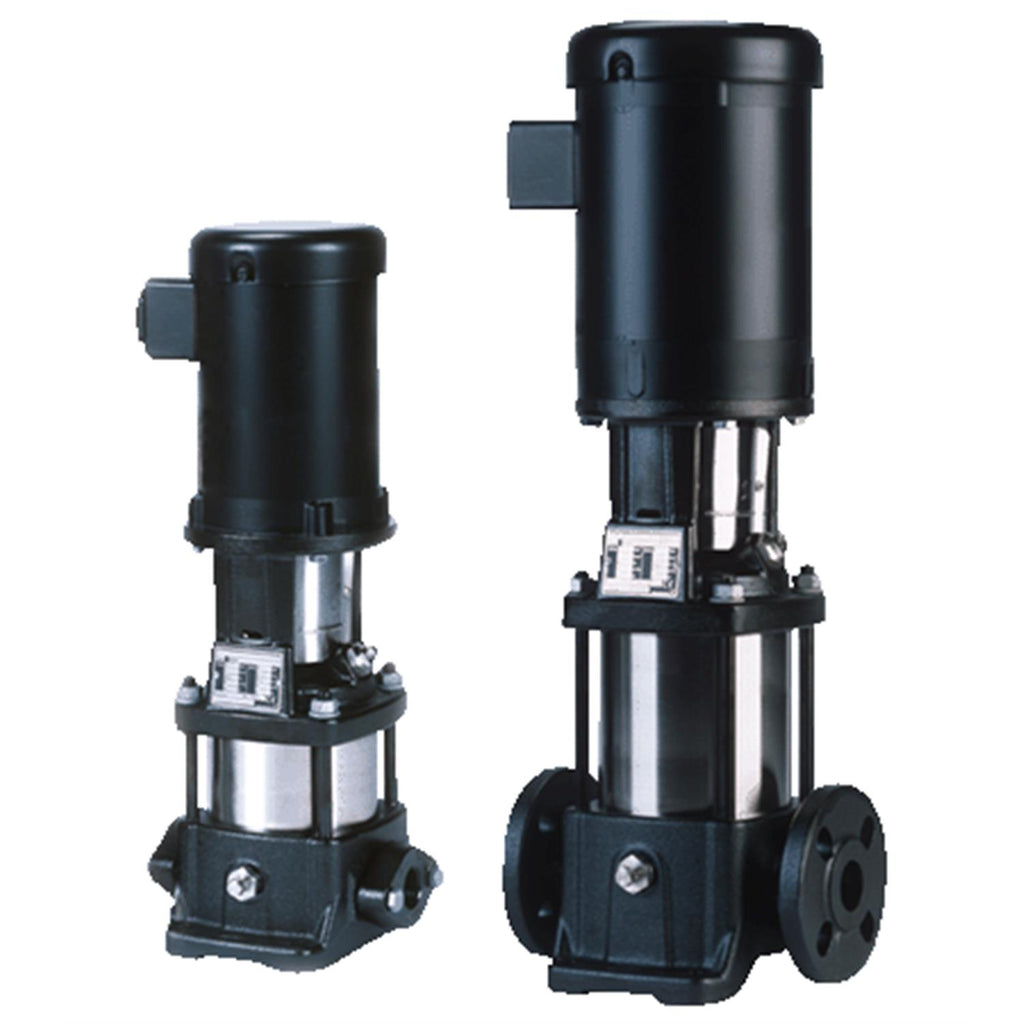

CR 3-25 · Vertical Multistage Centrifugal Pump
CR5HP208-230V1.0-Phase60 HzODPStainless steel

The Grundfos 96083269 (CR 3-25) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 15.9US gpm at 562ft. Rated 208-230V, 1.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
5HP
Voltage
208-230V
Phase
1.0-Phase
Max Flow
15.9US gpm
Max Head
562ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 3-25
Series: CR
Model Code: CR 3-25
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: Class 300
Technical Specifications
Model Number 96083269
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 5HP
Voltage 208-230V
Phase 1.0-Phase
Frequency 60 Hz
Motor Speed 3450rpm
Pump Speed 3468rpm
Full Load Current 28-26A
Motor Type BALDOR
Motor Efficiency 81%
Insulation Class B
Protection Class (IP) ODP
Nominal Flow 15.9US gpm
Nominal Head 562ft
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 1 1/4"inch
Outlet Connection 1 1/4"inch
Pipe Pressure Rating Class 300
Pipe Standard ANSI
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230V, 1.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 3-25
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700395184372
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection Class 300
Cooling ODP
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP23
Flange size for motor 213TC
Full load SF current 31.9-29.6 A
Gross weight 121.0 lb
Impeller Stainless steel
Impellers 25
Insulation class (IEC 85) B
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Model A
Motor 213TC
Motor efficiency at full load 1 0.81
Motor type BALDOR
Net weight 112.0 lb
Number of poles 2
Power (P2) required by pump 3.7 kW
Pressure rating for connection Class 300
Pump 3.7 kW
Pump speed on which pump data are based 3468 rpm
Pump version A
Pumped liquid Water
Rated current 28-26 A
Rated flow 15.9 US gpm
Rated head 562 ft
Rated power - P2 3.7 kW
Rated speed 3450 rpm
Rated voltage 1 x 208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/4" inch
Size of outlet connection 1 1/4" inch
Stages 25
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

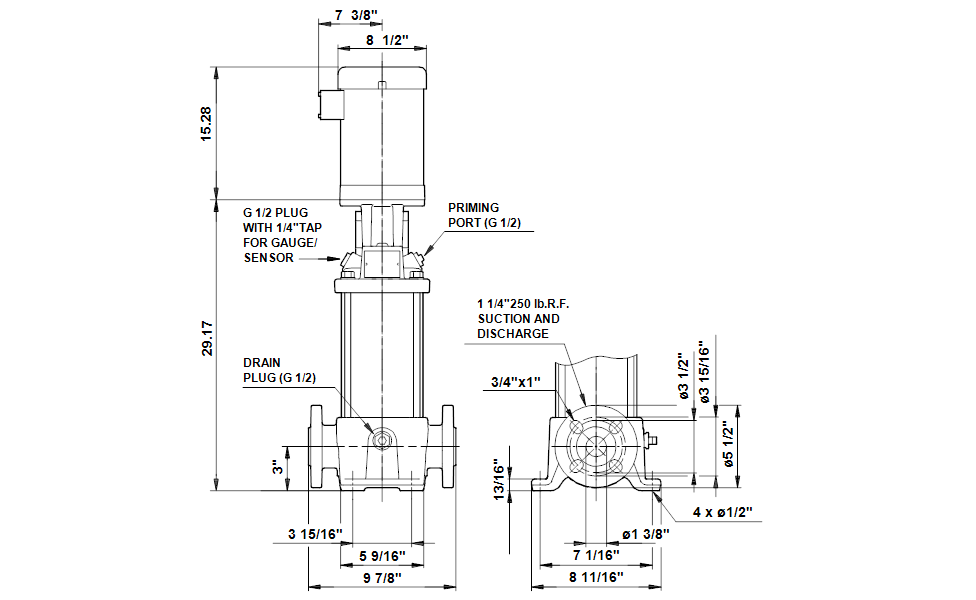

Dimensional Drawing

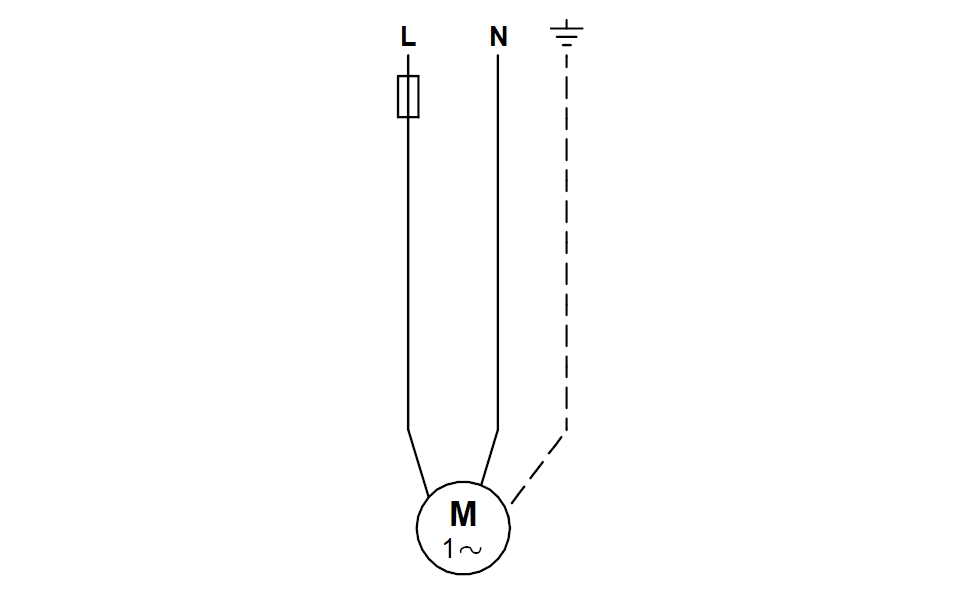

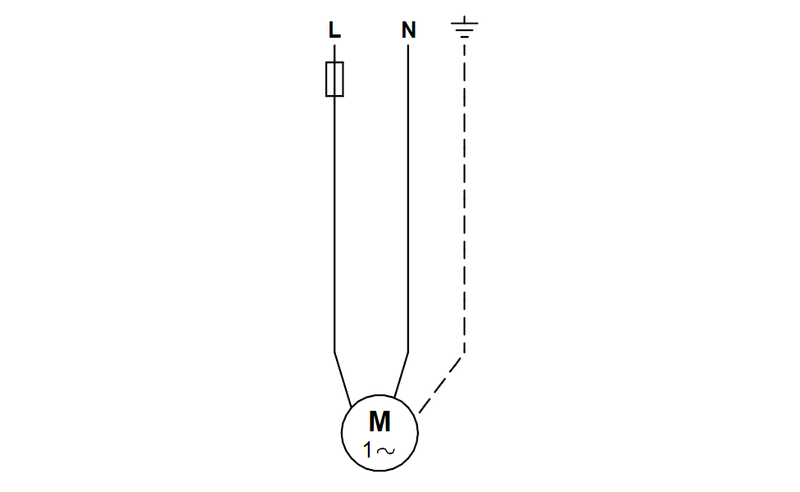

DWiring Diagram
