Grundfos 98493669 - CR 3-2 A-FGJ-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98493669

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 3-2 A-FGJ-A-V-HQQV · Vertical Multistage Centrifugal Pump
CR0.5HP220-255D/380-440YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 98493669 (CR 3-2 A-FGJ-A-V-HQQV) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 15.4US gpm at 44.62ft. Rated 220-255D/380-440YV, 3.0-Phase, 60 Hz.

Power
0.5HP
Voltage
220-255D/380-440YV
Phase
3.0-Phase
Max Flow
15.4US gpm
Max Head
44.62ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 3-2 A-FGJ-A-V-HQQV
Series: CR
Model Code: CR 3-2 A-FGJ-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQV
Flange Rating: PN 25
Technical Specifications
Model Number 98493669
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 0.5HP
Voltage 220-255D/380-440YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3410-3470rpm
Pump Speed 3447rpm
Full Load Current 1,50-1,44/0,87-0,83A
Motor Type 71AB
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 73.4-73.4%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 15.4US gpm
Nominal Head 44.62ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Inlet Connection DN 25/32
Outlet Connection DN 25/32
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQV
Approvals / Certifications CE, EAC, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-255D/380-440YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 3-2 A-FGJ-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711496085666
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 250 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 56.3 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 63 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor efficiency at 1/2 load 77.5-75.0 %
Motor efficiency at 3/4 load 80.0-79.0 %
Motor efficiency at full load 1 73.4-73.4 %
Motor standard IEC
Motor type 71AB
Net weight 50.4 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.85-0.76
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3447 rpm
Pump version A
Pumped liquid Water
Rated current 1
Rated flow 15.4 US gpm
Rated head 44.62 ft
Rated power - P2 0.37 kW
Rated speed 3410-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard IEC
Starting current 550-650 %
Type 71AB
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

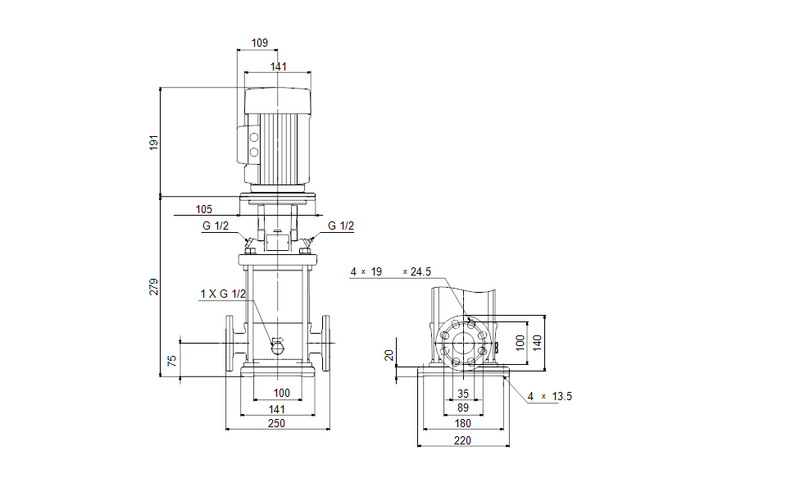

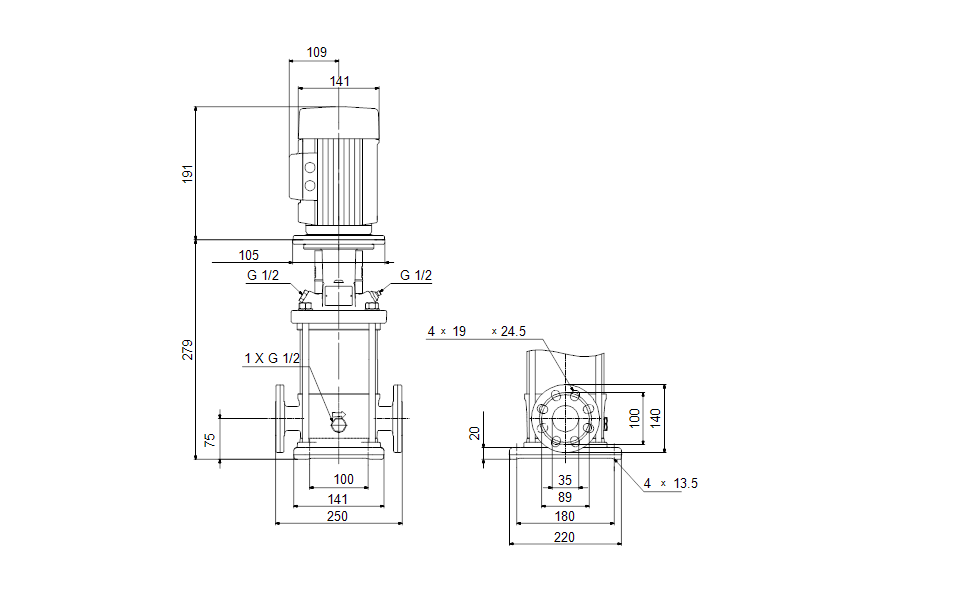

Dimensional Drawing

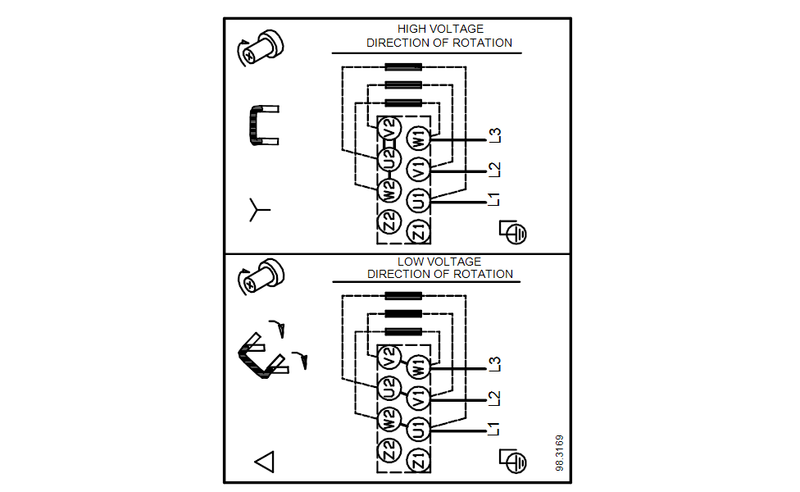

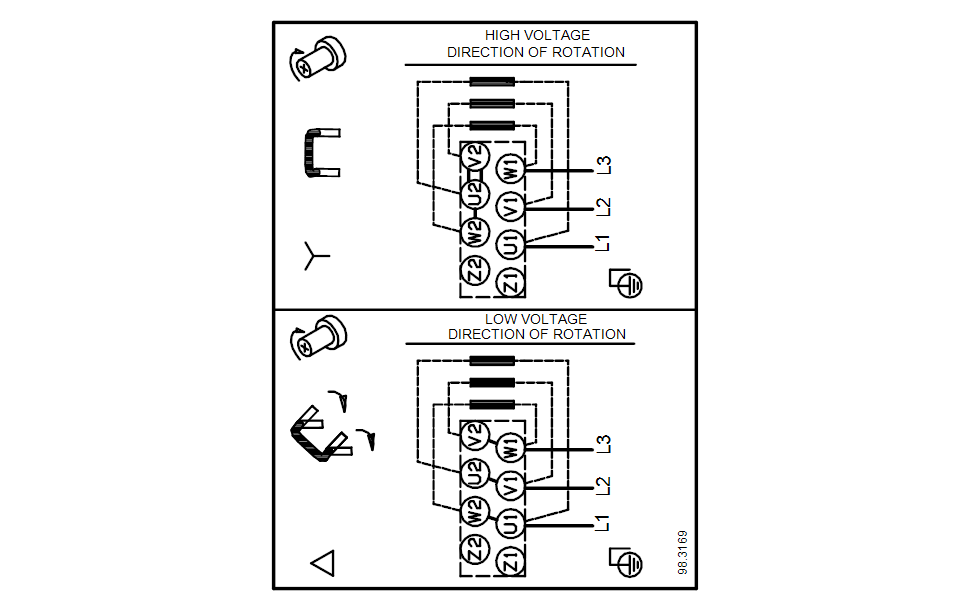

DWiring Diagram
