Grundfos 96978048 - CR 3-17 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,438.74
GRUNDFOSSKU: 96978048

Price:
Sale price$3,259.26 Regular price$5,698.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96978048 - CR 3-17 H-GA-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 96978048 - CR 3-17 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is part of the CR series, known for its versatility and efficiency in handling various fluids. The CR 3-17 H-GA-A-V-HQQV is suitable for both single and multi-stage applications, providing flexibility for your specific needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 124.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 3-17 H-GA-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 533.5 ft
Maximum operating pressure 362.59 psi
Model A
Motor 182TC
Motor efficiency at 1/2 load 91.4-90.1 %
Motor efficiency at 3/4 load 91.1-90.9 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard NEMA
Motor type 90HA
n rpm F
Net weight 112.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 3 HP
Phase 3
Power (P2) required by pump 3 HP
Power factor 1 0.85-0.82
Pressure rating for connection PN 25
Pressure sensor N
Pump 3 HP
Pump version H
Rated current 8,50-8,20/4,10 A
Rated flow 15.4 US gpm
Rated head 397.7 ft
Rated power - P2 3 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CR 3-17 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 17
Standard NEMA
Starting current 850-970 %
Type 90HA
Version H

Motor Curves

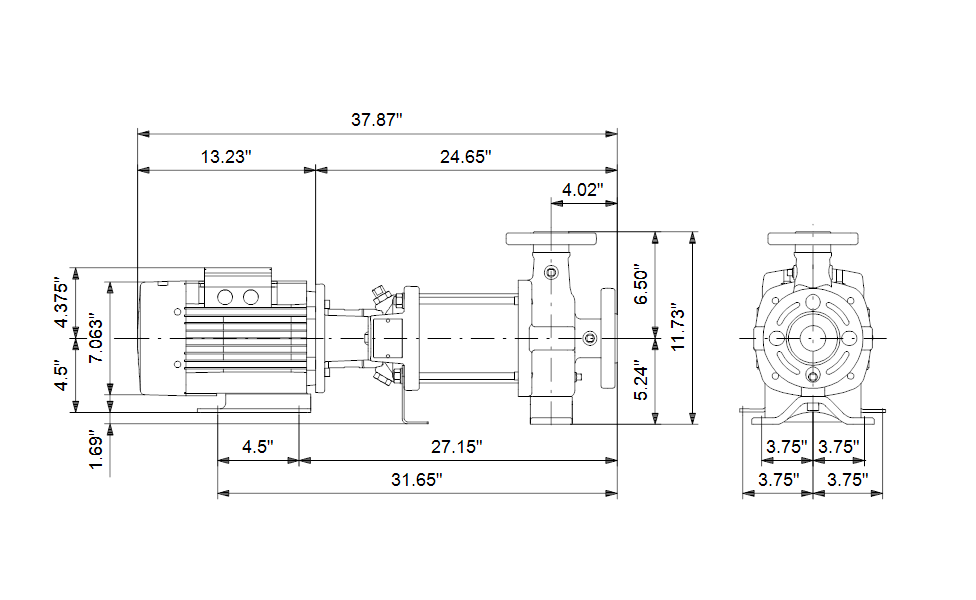

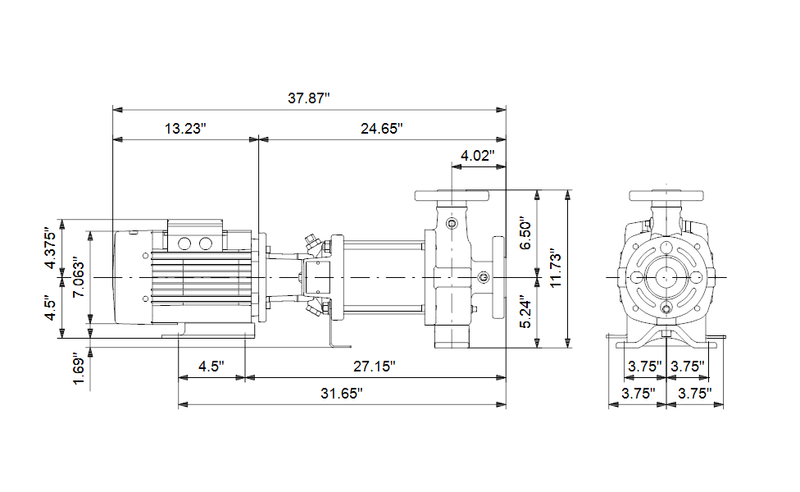

Dimensional Drawing

DWiring Diagram
