Grundfos 96543677 - CR 3-15 A-A-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96543677

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CR 3-15 A-A-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Liquid: Pumped liquid:

EAN 5700398178279
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Flange size for motor FT115
Frequency converter NONE
Gross weight 21.0 kg
Impeller Stainless steel
Impellers 0
Liquid temperature range -20 .. 90 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 16 bar / 90 °C
Maximum head 143.9 m
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor standard IEC
Net weight 18.3 kg
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated flow 3.5 m³/h
Rated head 108.5 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 20 °C
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 15
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

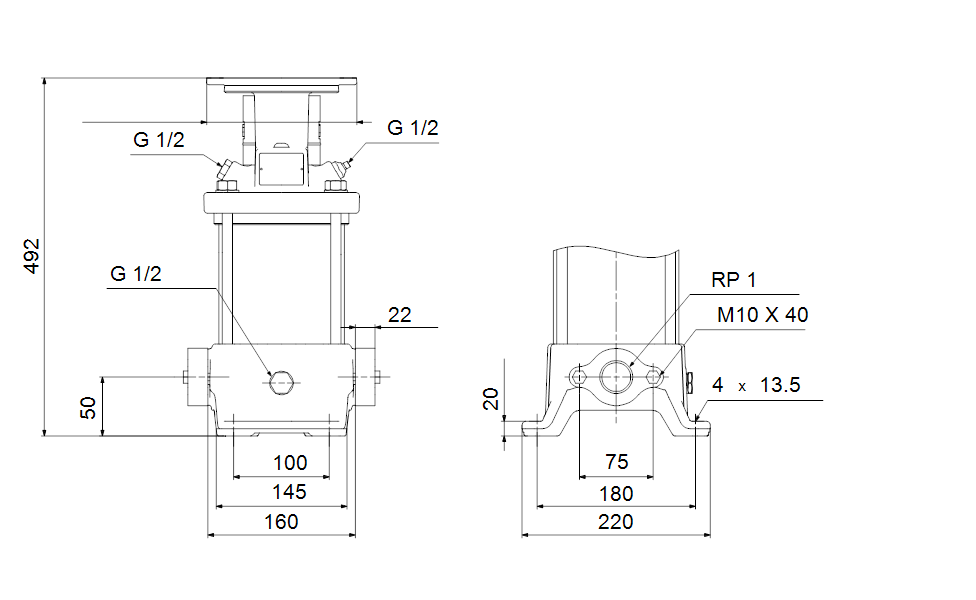

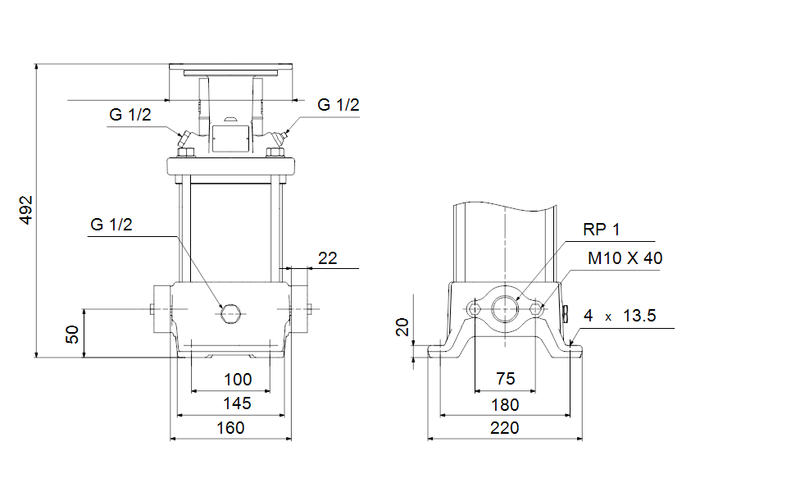

Dimensional Drawing
