Grundfos 92829044 - CR 3-10 A-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92829044

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92829044 - CR 3-10 A-B-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92829044 - CR 3-10 A-B-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and various fluid transfer tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 3-10 model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120192744
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 56C
Frequency converter NONE
Gross weight 92.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 312.7 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor No 99910575
Motor standard NEMA
Net weight 81.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version A
Pumped liquid Water
Rated flow 15.4 US gpm
Rated head 230.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 10
Standard NEMA
Type of connection Oval / NPT(F)
Version A

Motor Curves

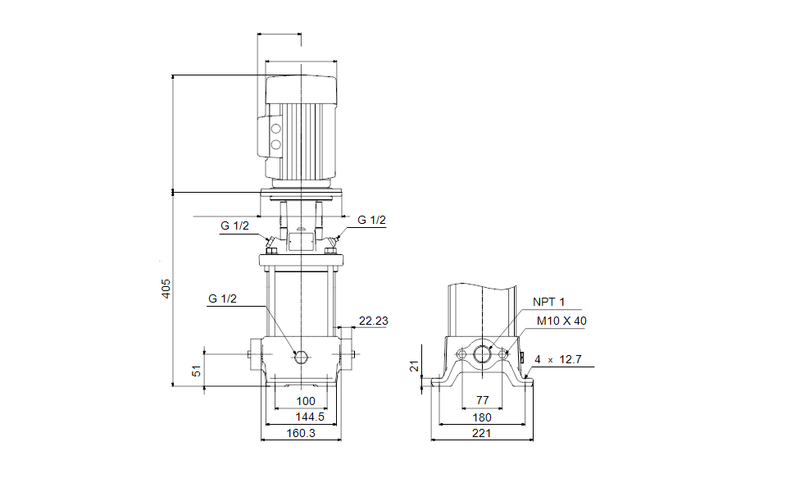

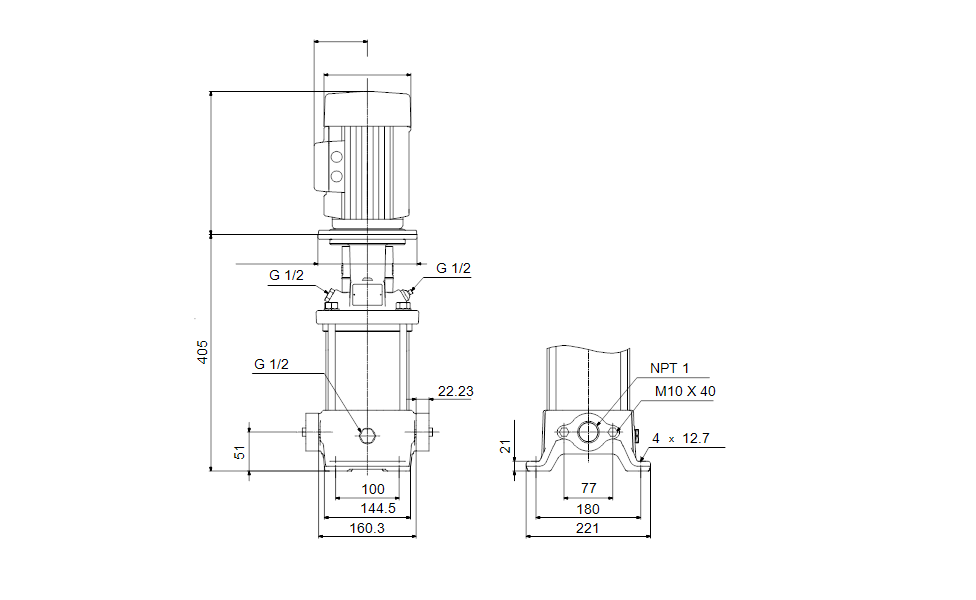

Dimensional Drawing
