Name: Grundfos 92905930 - CR 255-2 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline
Brand: GRUNDFOS
SKU: 92905930
Availability: InStock

Image shown may not be actual product

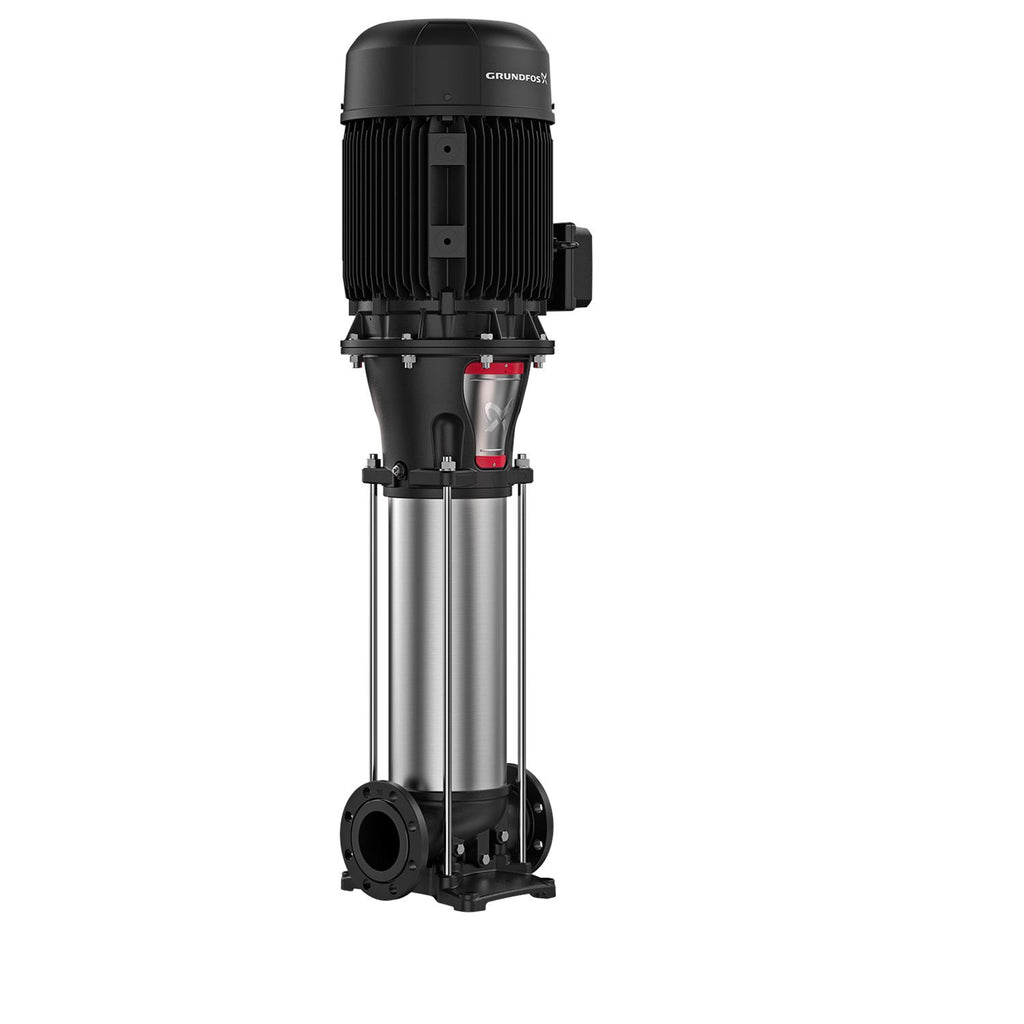

Grundfos 92905930 - CR 255-2 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

CR 255-2 A-F-A-E-HQQE · Vertical Multistage Centrifugal Pump

CR100HP380-420D/660-725YV3-Phase50 HzIE4IP55Stainless steel

The Grundfos 92905930 (CR 255-2 A-F-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 1120US gpm at 264.1ft. Rated 380-420D/660-725YV, 3-Phase, 50 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power

100HP

Voltage

380-420D/660-725YV

Phase

3-Phase

Max Flow

1120US gpm

Max Head

264.1ft

Max Pressure

232.06psi

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Premium Efficiency

IE4 motor — reduces operating cost over service life

Authorized Distributor

Genuine Grundfos product — full manufacturer warranty coverage

Expert Support

Technical help available — call (781) 281-8905 or chat

Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 255-2 A-F-A-E-HQQE

Series: CR

Model Code: CR 255-2 A-F-A-E-HQQE

Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring

Impeller Material: Stainless steel

Housing Material: Ductile cast iron

Shaft Seal: HQQE

Flange Rating: PN 16

Technical Specifications

Model Number	92905930
Product Series	CR
Series Description	Vertical Multistage Centrifugal Pump
Power	100HP
Voltage	380-420D/660-725YV
Phase	3-Phase
Frequency	50 Hz
Motor Speed	2978rpm
Full Load Current	126/73A
Motor Type	INNOMOTICS
Motor Protection	PTC
Motor Efficiency Class	IE4
Motor Efficiency	IE4 95,6%
Insulation Class	F
Protection Class (IP)	IP55
Nominal Flow	1120US gpm
Nominal Head	264.1ft
Max Operating Pressure	232.06psi
Max Fluid Temperature	248°F
Max Ambient Temperature	131°F
Inlet Connection	DN 200
Outlet Connection	DN 200
Pipe Pressure Rating	PN 16
Pipe Standard	DIN
Impeller Material	Stainless steel
Housing Material	Ductile cast iron
Shaft Seal	HQQE
Approvals / Certifications	CE, UKCA, SEPRO

Applications

HVAC: Heating

HVAC: Air Conditioning

Plumbing: Pressure Boosting

District heating

District cooling

Machining

Wash and clean

Process liquids transfer

Industrial heating

Cooling

Industrial water supply & transfer

Industrial wastewater treatment & reuse

Industrial process water treatment

Desalination

Municipal surface water

Drinking water treatment

Municipal water transportation

Municipal solar solutions

Rotor & spray irrigation

Ground water transfer

Livestock & Wildlife Watering

Water Treatment Fertigation

Chemigation & Dosing

Pivot & Lateral Irrigation

Frost protection

Solar boosting and water supply solutions

Controls and digital groundwater management

Solar controls and digital water management

Municipal solar solutions

Agriculture solar solutions

Livestock watering with solar solutions

Community solar solutions

Important Notices

Electrical	Verify supply voltage, phase, and frequency match nameplate before installation: 380-420D/660-725YV, 3-Phase, 50 Hz.
Temperature limits	Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running	Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.

Documentation

✓ Installation and Operating Manual (IOM) — CR Series

✓ Product Data Sheet — CR 255-2 A-F-A-E-HQQE

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.

Grundfos 92905930 - CR 255-2 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Description

Vertical Multistage Design

Stainless Steel Wetted Parts

QuickTight Connection System

Wide Configuration Range

Authorized Grundfos Distributor

Contact PumpStop for Sizing

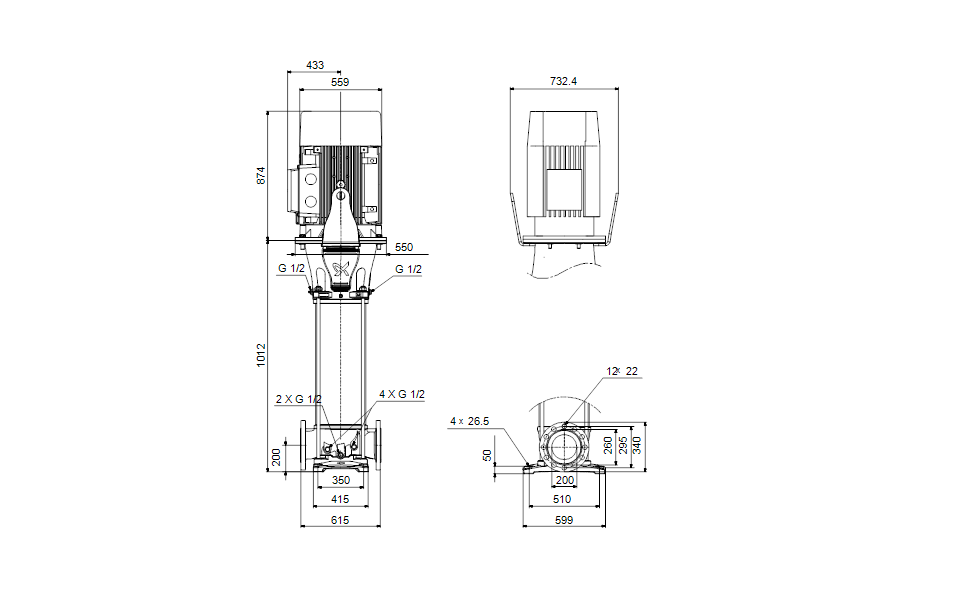

Dimensional Drawing
