Grundfos 99997162 - CR 20-8 B-F-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 99997162 - CR 20-8 B-F-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CR 20-8 B-F-A-V-HQQV is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the renowned CR series, known for its versatility and durability, making it a preferred choice for professionals in various sectors.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715115303155
Actual impeller diameter 4.13 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 410.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 387.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.4-92.3 %
Motor efficiency at 3/4 load 92.4-92.7 %
Motor efficiency at full load 1 91.9-91.9 %
Motor standard IEC
Motor type 160BB
Net weight 348.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 2924 rpm
Pump version B
Pumped liquid Water
Rated current 48
Rated flow 92.5 US gpm
Rated head 312 ft
Rated power - P2 15 kW
Rated speed 2930-2950 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard IEC
Starting current 660-780 %
Type 160BB
Type of connection DIN
Version B

Motor Curves

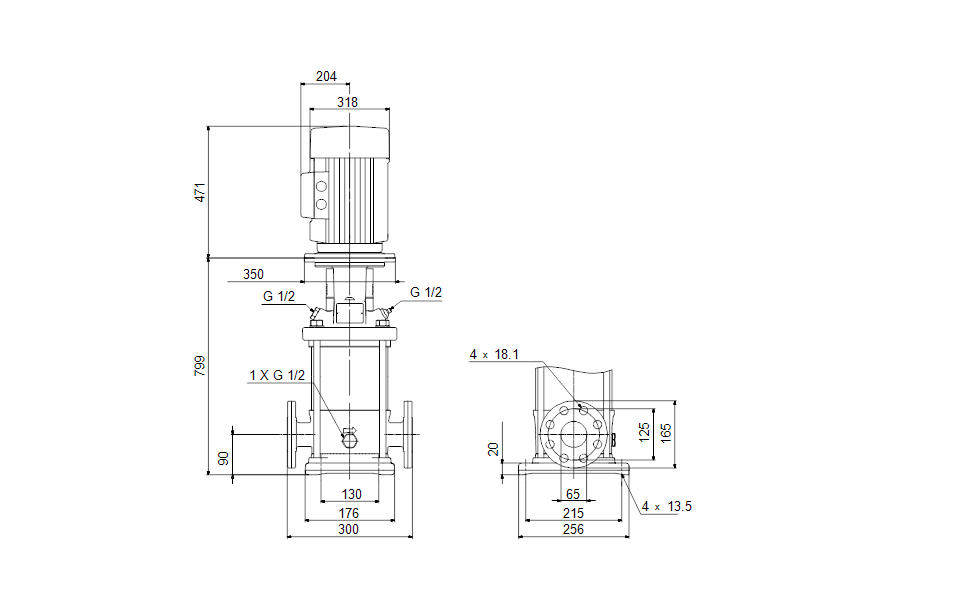

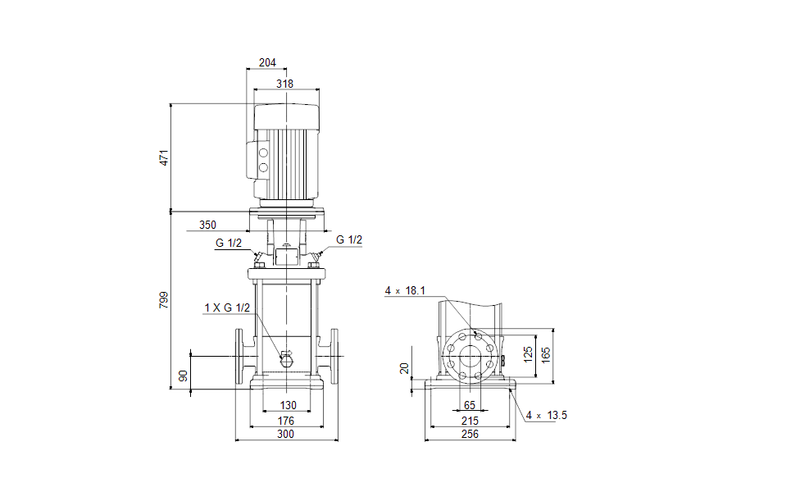

Dimensional Drawing

DWiring Diagram
