Grundfos 97655693 - CR 20-8 H-GB-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $6,350.66
GRUNDFOSSKU: 97655693

Price:
Sale price$8,487.34 Regular price$14,838.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97655693 - CR 20-8 H-GB-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model is part of the CR series, known for its robust construction and versatility. The CR 20-8 H-GB-A-E-HQQE features a multi-stage design that allows for high pressure and flow rates, ensuring optimal performance in demanding environments. It is suitable for a range of applications, including water supply, irrigation, and industrial processes.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, as this will help ensure compatibility and performance.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GB
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 507.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 20-8 H-GB-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 541 ft
Maximum operating pressure 362.59 psi
Model A
Motor 254TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
n rpm F
Net weight 386.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 20 HP
Phase 3
Power (P2) required by pump 20 HP
Pressure rating for connection PN 25
Pressure sensor N
Pump 20 HP
Pump version H
Rated current 46/23 A
Rated flow 101 US gpm
Rated head 442 ft
Rated power - P2 20 HP
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 20-8 H-GB-A-E-HQQE
Shaft seal HQQE
Stages 8
Standard NEMA
Type BALDOR
Version H

Motor Curves

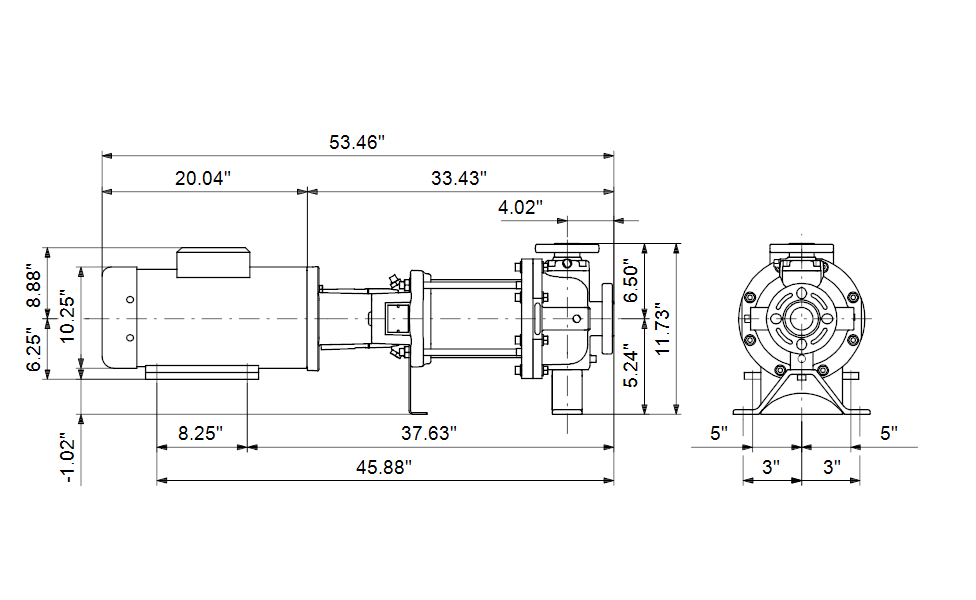

Dimensional Drawing

DWiring Diagram
