Grundfos 98161624 - CR 20-5 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $4,216.32
GRUNDFOSSKU: 98161624

Price:
Sale price$4,567.68 Regular price$8,784.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161624 - CR 20-5 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98161624 - CR 20-5 A-A-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CR 20-5 model is suitable for various service special applications. It is part of the renowned Grundfos Centrifugal Pumps series, which includes both single and multi-stage options. This pump is particularly effective in vertical installations, ensuring optimal space utilization and ease of maintenance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Explore the reliability and efficiency of the Grundfos 98161624 - CR 20-5 A-A-A-E-HQQE pump today and experience the quality that Grundfos is known for.

EAN 5710629596420
Actual impeller diameter 4.13 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 10
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 247.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 145 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 240.8 ft
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 89.6-88.4 %
Motor efficiency at 3/4 load 90.0-89.8 %
Motor efficiency at full load 1 89.2-89.2 %
Motor standard IEC
Motor type 132DA
Net weight 198.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 10
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 19.0/11.0 A
Rated flow 92.5 US gpm
Rated head 190.3 ft
Rated power - P2 5.5 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 5
Standard IEC
Starting current 1080-1180 %
Type 132DA
Type of connection Oval / Rp
Version A

Motor Curves

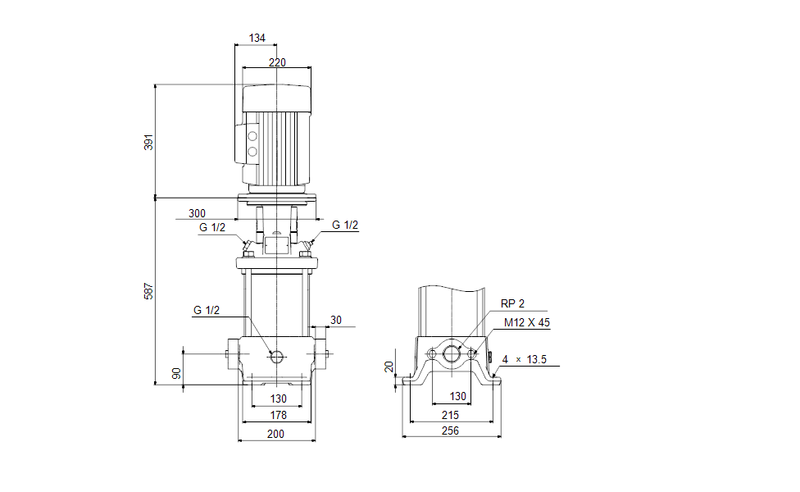

Dimensional Drawing

DWiring Diagram
