Grundfos 97535061 - CR 20-5 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,040.51
GRUNDFOSSKU: 97535061

Price:
Sale price$4,063.49 Regular price$7,104.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97535061 - CR 20-5 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model features a robust construction and advanced design, ensuring optimal performance in demanding environments. The CR series is known for its versatility, and the CR 20-5 H-G05-A-V-HQQV is no exception, suitable for both horizontal and vertical installations.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs. For more information on specifications and applications, feel free to reach out to our knowledgeable team.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 311.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 337.9 ft
Maximum operating pressure 232.06 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 148.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 101 US gpm
Rated head 272.7 ft
Rubber V
Sales region USA
Shaft Product name:CR 20-5 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 5
Standard NEMA
Version H

Motor Curves

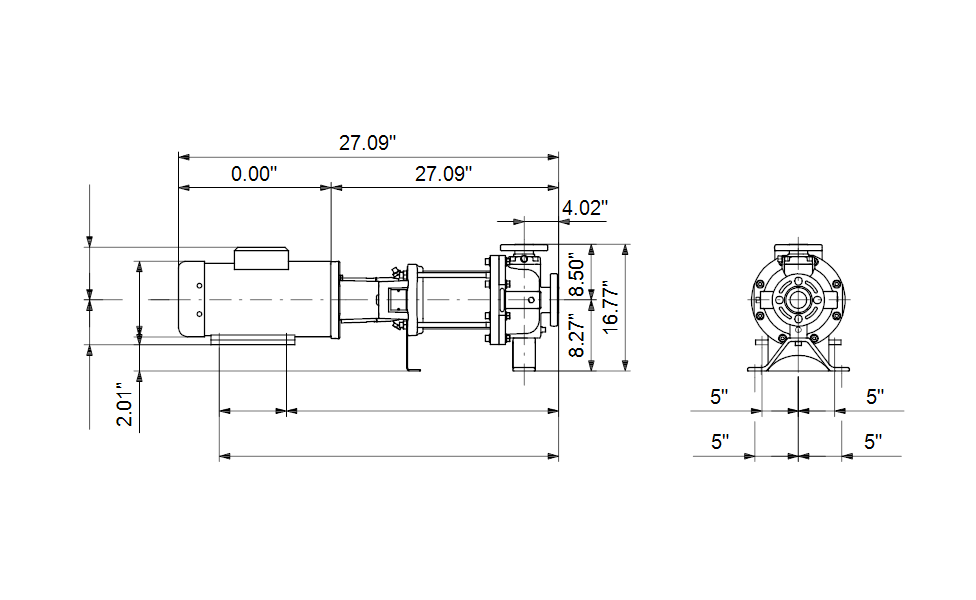

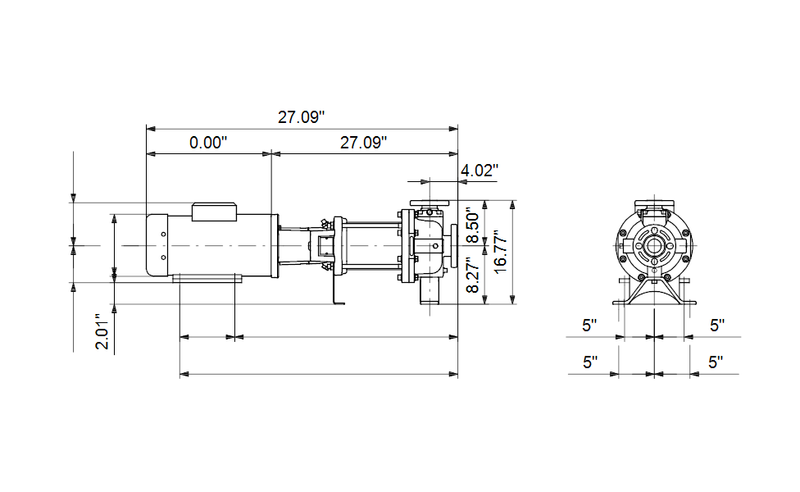

Dimensional Drawing
