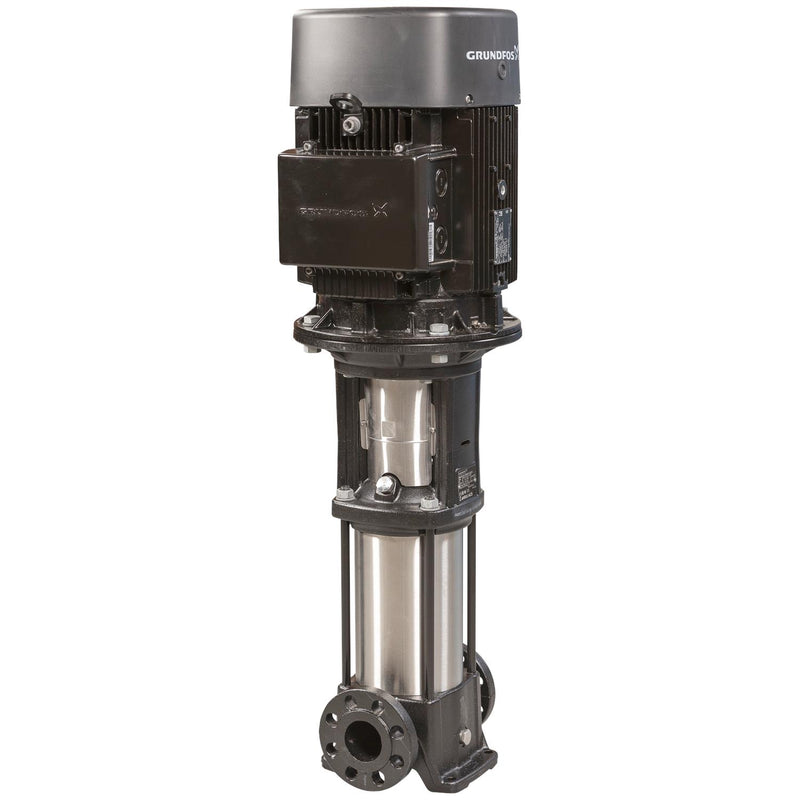

Grundfos 96500518 - CR 20-17 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96500518

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96500518 - CR 20-17 A-F-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial fluid transfer and high-pressure in-line systems, suited for plant maintenance and mechanical contractors.

Key features

  • Vertical multistage centrifugal design for compact, high-head performance
  • Suitable for high-pressure and in-line applications based on product family tags
  • Constructed for reliable industrial service with easy integration into existing systems

Applications

Boiler feed, process water transfer, high-pressure boosting, and other industrial or commercial fluid-handling tasks where a vertical multistage centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96500518

EAN 5700396203423
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 498.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 826.8 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 93.2-92.2 %
Motor efficiency at 3/4 load 93.2-93.0 %
Motor efficiency at full load 1 92.4-92.4 %
Motor standard IEC
Motor type 160LB
Net weight 410.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Power factor 1 0.89-0.85
Pressure rating for connection PN 25
Product family CR 20
Pump 18.5 kW
Pump speed on which pump data are based 2934 rpm
Pump version A
Pumped liquid Water
Rated current 34
Rated flow 92.5 US gpm
Rated head 665.7 ft
Rated power - P2 18.5 kW
Rated speed 2940-2950 rpm
Rated voltage 3 x 380-415D/660-690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 17
Standard IEC
Starting current 830-980 %
Terminal box position 6
Type 160LB
Type of connection DIN
Version A
Danish VVS No. 385905170
Finnish LVI No. 4925455
Swedish RSK No. 5823496

Motor Curves

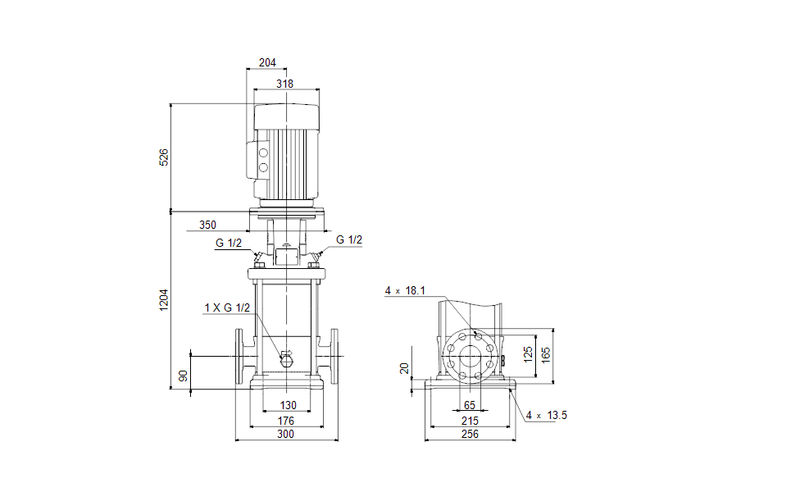

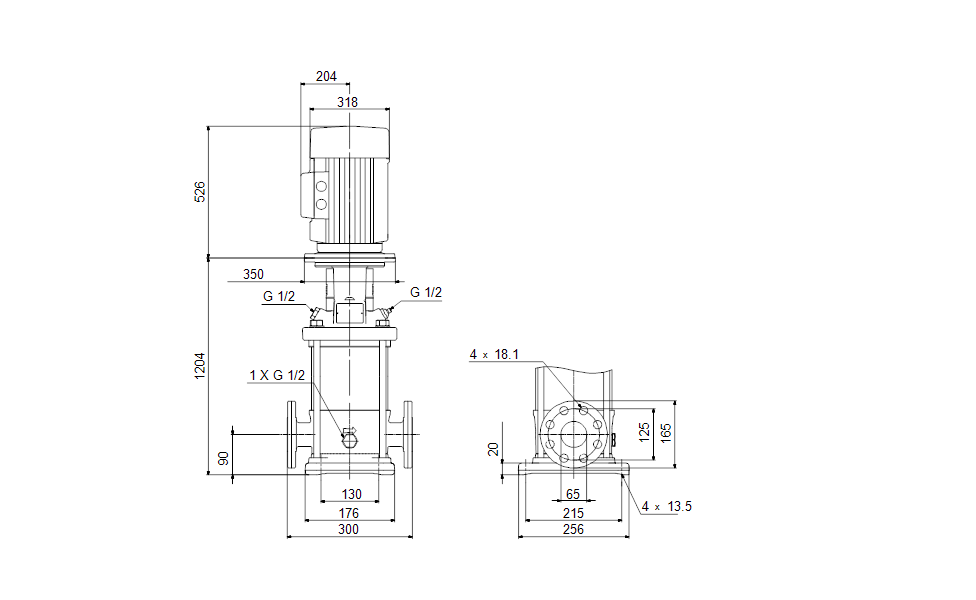

Dimensional Drawing

DWiring Diagram
