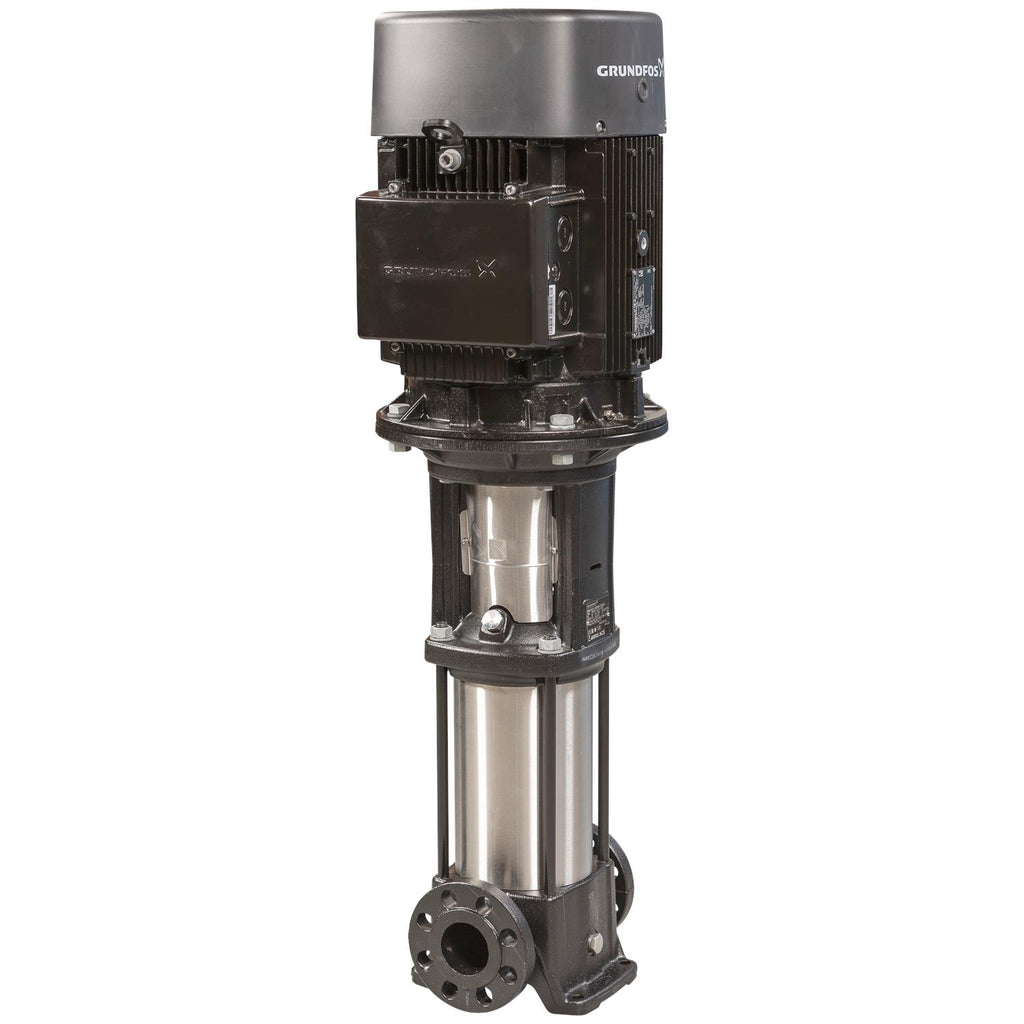

Grundfos 96500428 - CR 20-17 A-F-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96500428

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96500428 is a vertical, multistage centrifugal pump suited for industrial and commercial fluid-handling systems. The CR 20-17 A-F-A-V-HQQV is used by facilities and service technicians needing reliable high-pressure in-line pumping.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical, multistage centrifugal design for high-pressure, in-line operation
  • Delivers consistent pressure and flow for process, boiler feed, and transfer duties

Applications

Suitable for boiler feed, high-pressure transfer, process water, and other industrial fluid systems where compact vertical multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96500428

EAN 5700396201627
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 498.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 826.8 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 93.2-92.2 %
Motor efficiency at 3/4 load 93.2-93.0 %
Motor efficiency at full load 1 92.4-92.4 %
Motor standard IEC
Motor type 160LB
Net weight 410.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Power factor 1 0.89-0.85
Pressure rating for connection PN 25
Product family CR 20
Pump 18.5 kW
Pump speed on which pump data are based 2934 rpm
Pump version A
Pumped liquid Water
Rated current 59
Rated flow 92.5 US gpm
Rated head 665.7 ft
Rated power - P2 18.5 kW
Rated speed 2940-2950 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 17
Standard IEC
Starting current 830-980 %
Terminal box position 6
Type 160LB
Type of connection DIN
Version A

Motor Curves

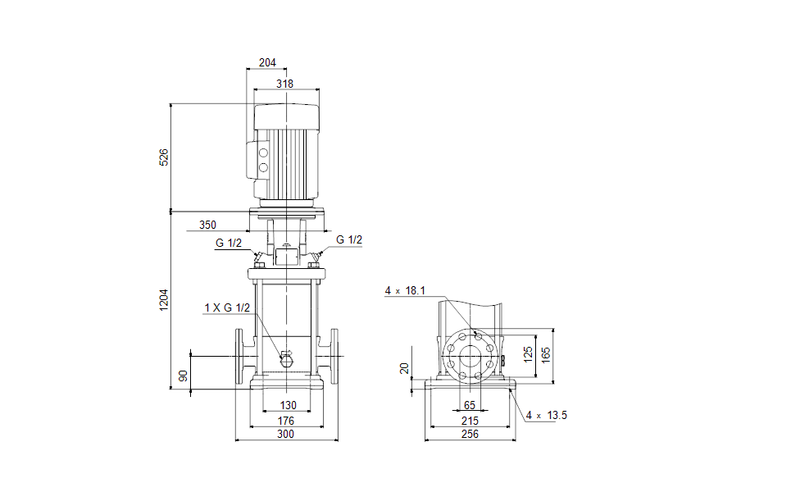

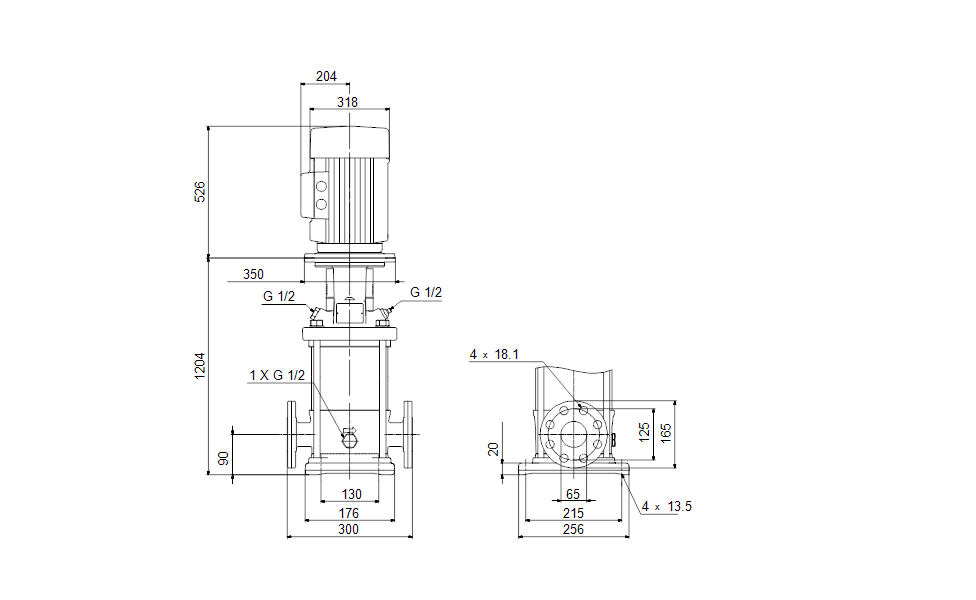

Dimensional Drawing

DWiring Diagram
