Grundfos 97938742 - CR 20-10 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97938742

Price:
Sale price$16,161.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97938742 - CR 20-10 K-GJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97938742 - CR 20-10 K-GJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CR 20-10 K-GJ-A-E-HQQE is ideal for high-pressure applications, making it a perfect choice for those seeking a durable and efficient pumping solution. This pump is part of the renowned Grundfos CR series, known for its versatility and exceptional performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710626772001
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.96
Flange rating inlet 250 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 238.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum head 698.9 ft
Maximum operating pressure 25 bar
Model A
Motor 284TC
Motor standard NEMA
Net weight 126.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3521 rpm
Pump version K
Rated flow 111 US gpm
Rated head 561.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Type of connection ANSI / JIS
Version K

Motor Curves

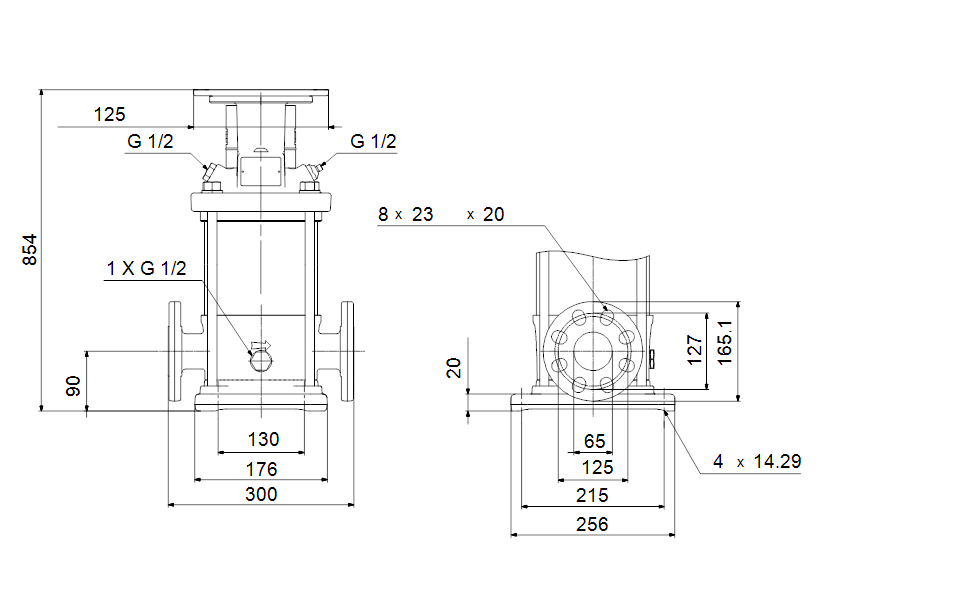

Dimensional Drawing
