Grundfos 97535049 - CR 20-10 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $4,905.31
GRUNDFOSSKU: 97535049

Price:
Sale price$6,555.69 Regular price$11,461.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97535049 - CR 20-10 H-GA-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97535049 - CR 20-10 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is part of the CR series, known for its versatility and efficiency in handling various fluids. The CR 20-10 H-GA-A-V-HQQV is suitable for both horizontal and vertical installations, providing flexibility in system design.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 278.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 676.2 ft
Maximum operating pressure 362.59 psi
Model A
Motor 284TC
Motor standard NEMA
n rpm 3521rpm
Net weight 157.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 101 US gpm
Rated head 555.1 ft
Rubber V
Sales region USA
Shaft Product name:CR 20-10 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 10
Standard NEMA
Version H

Motor Curves

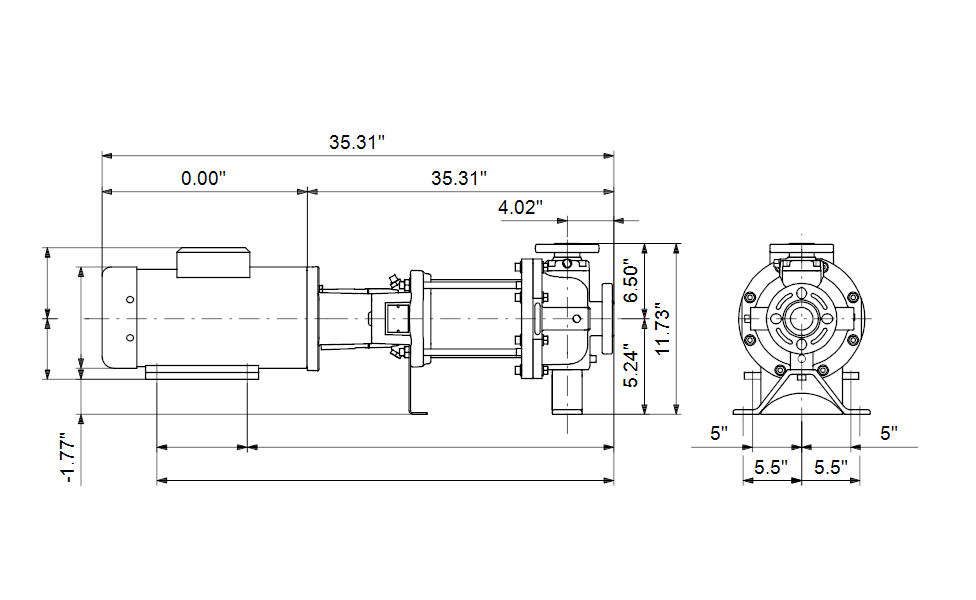

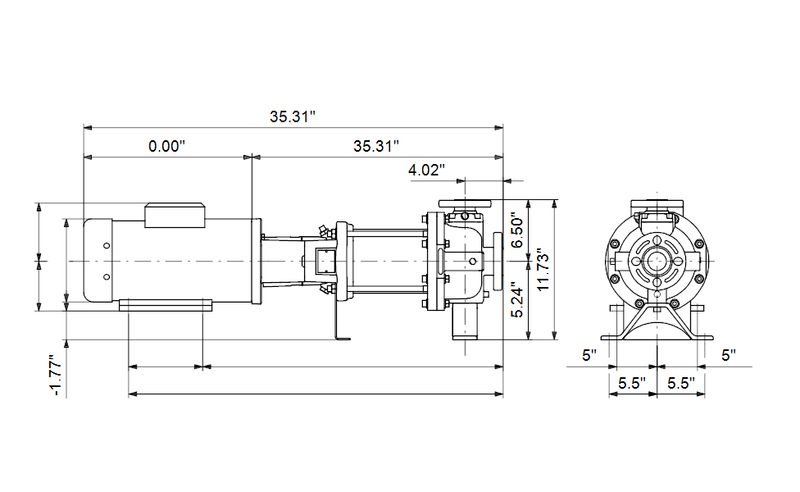

Dimensional Drawing
