Grundfos 97655509 - CR 20-1 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,745.19
GRUNDFOSSKU: 97655509

Price:
Sale price$3,668.81 Regular price$6,414.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97655509 - CR 20-1 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97655509 - CR 20-1 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for boosting pressure and transferring fluids in demanding environments.

This pump is part of the CR series, known for its robust construction and versatility. It is suitable for various applications, including water supply, irrigation, and industrial processes. The CR 20-1 model features a compact design, allowing for easy installation in tight spaces while delivering exceptional performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 271.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 20-1 H-GA-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 66.6 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor efficiency at 1/2 load 91.4-90.1 %
Motor efficiency at 3/4 load 91.1-90.9 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard NEMA
Motor type 90HA
n rpm F
Net weight 170.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 3 HP
Phase 3
Power (P2) required by pump 3 HP
Power factor 1 0.85-0.82
Pressure rating for connection PN 16
Pressure sensor N
Pump 3 HP
Pump version H
Rated current 8,50-8,20/4,10 A
Rated flow 74.8 US gpm
Rated head 55.12 ft
Rated power - P2 3 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 20-1 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Starting current 850-970 %
Type 90HA
Version H

Motor Curves

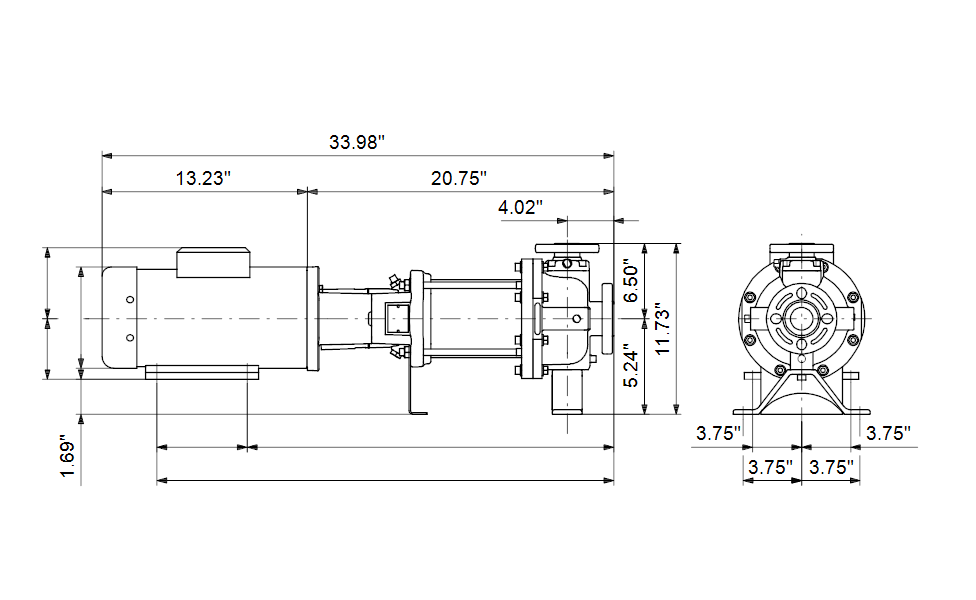

Dimensional Drawing

DWiring Diagram
