EAN
5700398992004
Applications
Industrial applications
Approvals
CE
Approvals for drinking water
WRAS
Bearing 1
SIC
Built-in motor protection
NONE
Code for rubber
E
Code for shaft seal
HQQE
Connect code
FGJ
Connection
PN 25
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
55 Dust/Jetting
Flange rating inlet
250 lb
Flange size for motor
FT85
Frequency converter
NONE
Gross weight
60.7 lb
IE Efficiency class
IE3
Impeller
Stainless steel
Impellers
0
Insulation class (IEC 85)
F
Liquid temperature range
-4 .. 248 °F
Low NPSH
N
Mains frequency
50 Hz
Material code
A
Material Pricing Group
6
Max pressure at stated temp
363 psi / 250 °F
Maximum ambient temperature
140 °F
Maximum head
155.8 ft
Maximum operating pressure
25 bar
Minimum efficiency index, MEI ≥
0.54
Model
A
Motor
FT85
Motor efficiency at 1/2 load
75.5-71.5 %
Motor efficiency at 3/4 load
79.0-76.5 %
Motor efficiency at full load 1
73.8-73.8 %
Motor standard
IEC
Motor type
71A
Net weight
54.6 lb
Number of poles
2
Number of reduced-diameter impellers
0
Power (P2) required by pump
0.37 kW
Power factor 1
0.80-0.70
Pressure rating for connection
PN 25

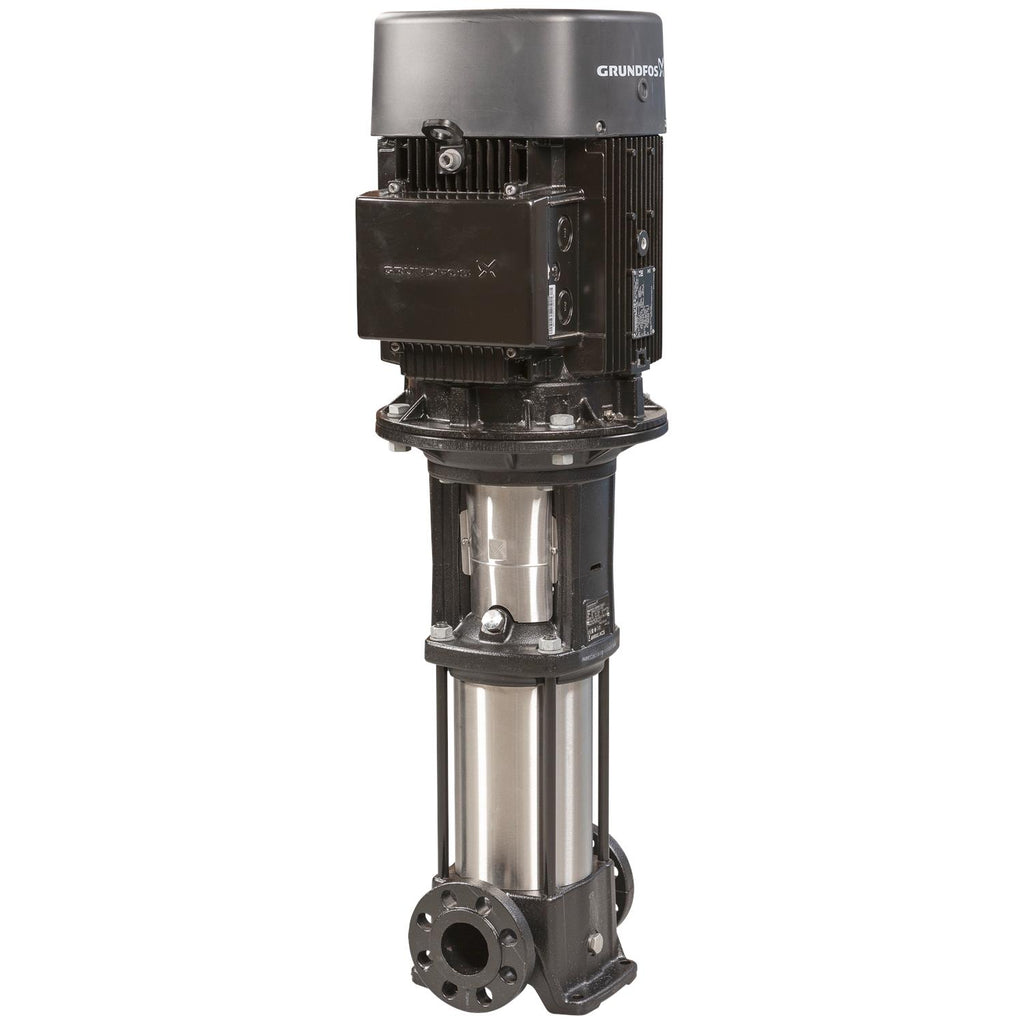

Product family
CR 1S
Pump
0.37 kW
Pump speed on which pump data are based
2873 rpm
Pump version
A
Pumped liquid
Water
Rated current
0.041666666666666664
Rated flow
3.96 US gpm
Rated head
106.6 ft
Rated power - P2
0.37 kW
Rated speed
2850-2880 rpm
Rated voltage
3 x 380-415D V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
E
Selected liquid temperature
68 °F
Size of inlet connection
DN 25/32
Size of outlet connection
DN 25/32
Stages
8
Standard
IEC
Starting current
490-530 %
Terminal box position
6
Type
71A
Type of connection
DIN / ANSI / JIS
Version
A
