Grundfos 99839624 - CR 1S-7 A-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99839624

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99839624 - CR 1S-7 A-B-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713835022165
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange size for motor 56C
Frequency converter NONE
Gross weight 63.3 lb
IE efficiency IE2 68%
IE Efficiency class NEMA Energy / IE2 60Hz / NRC
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 195.5 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.68
Motor standard NEMA
Motor type BALDOR
Net weight 52.3 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3485 rpm
Pump version A
Pumped liquid Water
Rated current 0.8 A
Rated flow 4.84 US gpm
Rated head 131.9 ft
Rated power - P2 0.37 kW
Rated speed 3450 rpm
Rated voltage 3 x 575 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 7
Standard NEMA
Type BALDOR
Type of connection Oval / NPT(F)
Version A

Motor Curves

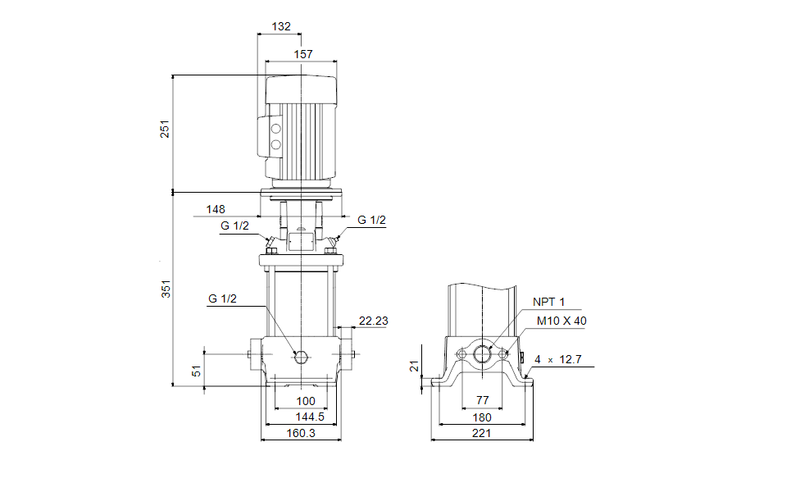

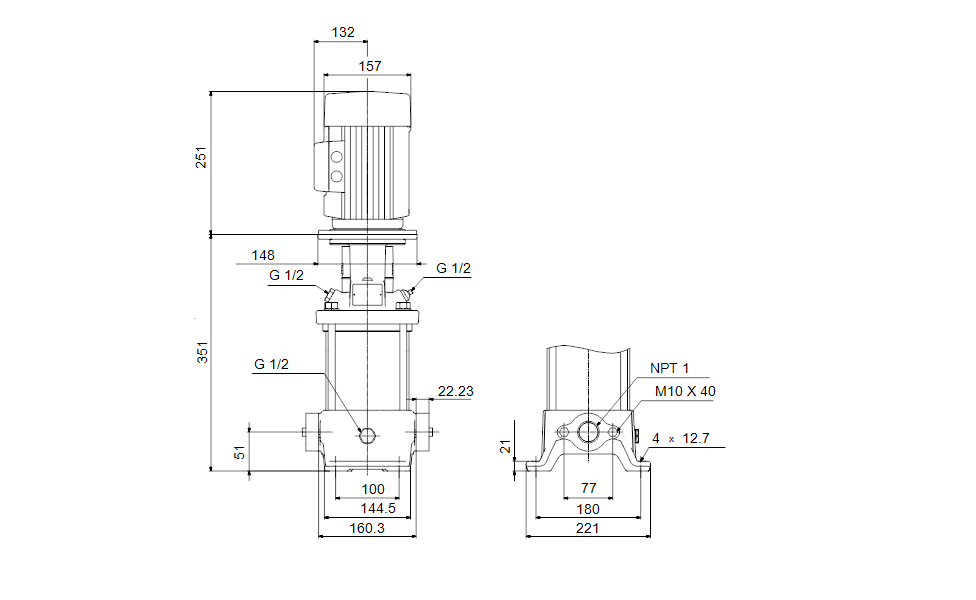

Dimensional Drawing

DWiring Diagram
