Grundfos 99482500 - CR 1S-5 B-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99482500

Price:
Sale price$3,172.22
or Call for most up to date lead times. (781) 281-8905

Description

CR 1S-5 B-B-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713829839526
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency converter NONE
Gross weight 58.8 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 140.1 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 77.1-75.4 %
Motor efficiency at 3/4 load 79.9-79.5 %
Motor efficiency at full load 1 79.5-80.6 %
Motor standard NEMA
Motor type 71AB
Net weight 47.8 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.84-0.78
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3425 rpm
Pump version B
Pumped liquid Water
Rated current 1
Rated flow 4.84 US gpm
Rated head 95.48 ft
Rated power - P2 0.37 kW
Rated speed 3430-3460 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 5
Standard NEMA
Starting current 590-650 %
Type 71AB
Type of connection Oval / NPT(F)
Version B

Motor Curves

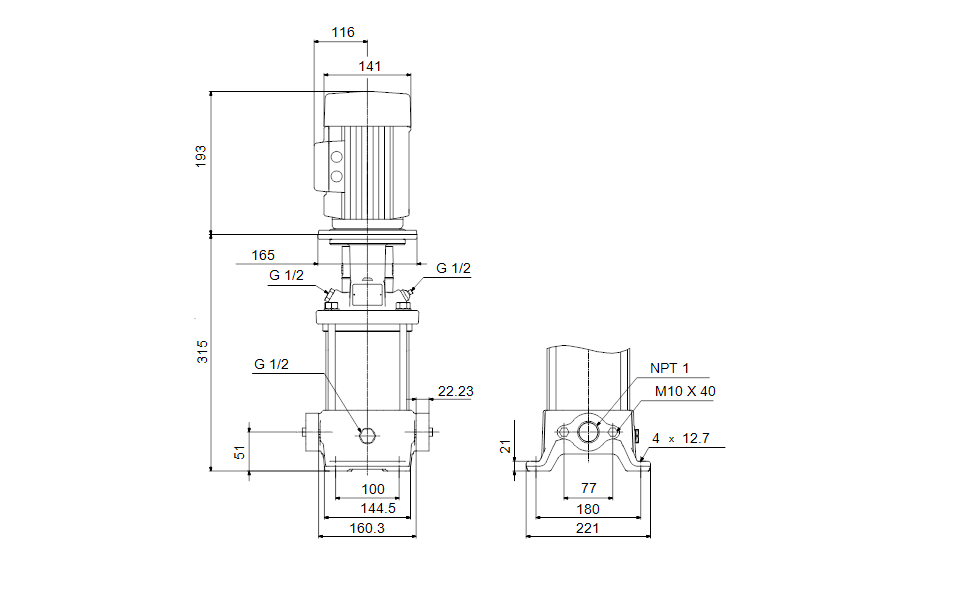

Dimensional Drawing

DWiring Diagram
