Grundfos 97654443 - CR 1S-5 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,199.68
GRUNDFOSSKU: 97654443

Price:
Sale price$1,603.32 Regular price$2,803.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97654443 - CR 1S-5 H-GA-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97654443 - CR 1S-5 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is part of the CR series, known for its versatility and adaptability in various settings. The CR 1S-5 H-GA-A-V-HQQV is suitable for both horizontal and vertical installations, providing flexibility in your system design.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

Approvals on nameplate CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 72.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 1S-5 H-GA-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 140.1 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor efficiency at 1/2 load 73.1-71.5 %
Motor efficiency at 3/4 load 77.6-77 %
Motor efficiency at full load 1 78.8-79.3 %
Motor standard NEMA
Motor type 71AA
n rpm F
Net weight 59.7 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 0.33 HP
Phase 3
Power (P2) required by pump 0.33 HP
Power factor 1 0.81-0.75
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.33 HP
Pump version H
Rated current 1,12-1.10/0.55 A
Rated flow 4.84 US gpm
Rated head 95.48 ft
Rated power - P2 0.33 HP
Rated speed 3450-3480 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.35
Shaft Product name:CR 1S-5 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 5
Standard NEMA
Starting current 630-700 %
Type 71AA
Version H

Motor Curves

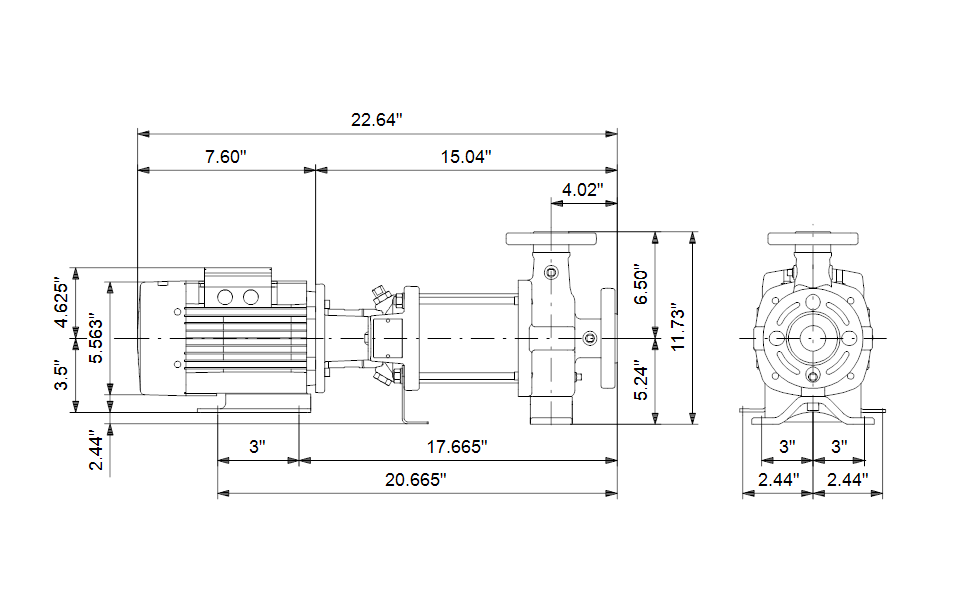

Dimensional Drawing

DWiring Diagram
