Grundfos 98160005 - CR 1S-23 A-A-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,157.12
GRUNDFOSSKU: 98160005

Price:
Sale price$2,336.88 Regular price$4,494.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160005 - CR 1S-23 A-A-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98160005 - CR 1S-23 A-A-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CR 1S-23 model is perfect for applications requiring consistent flow and pressure. This pump is part of the renowned Grundfos Centrifugal Pumps series, which includes both single and multi-stage options, ensuring versatility for various operational needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98160005. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5711494593521
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 72.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 441 ft
Maximum operating pressure 16 bar
Model A
Motor FT100
Motor standard IEC
Net weight 63.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 2864 rpm
Pump version A
Pumped liquid Water
Rated flow 3.96 US gpm
Rated head 296.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 23
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

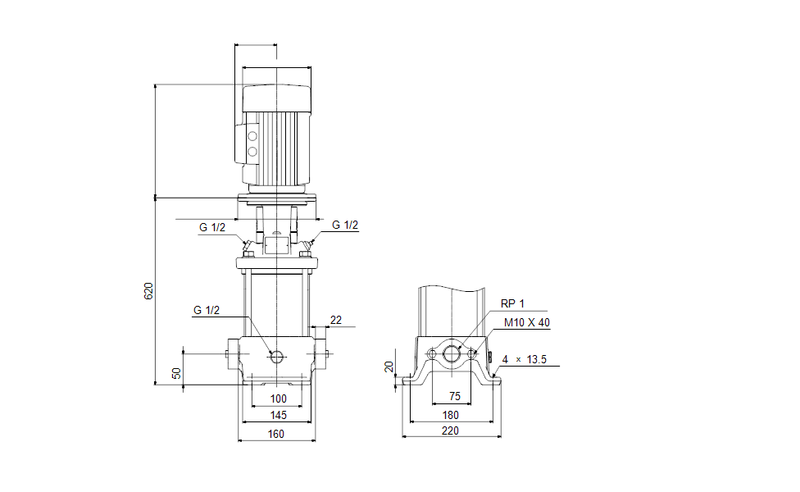

Dimensional Drawing
