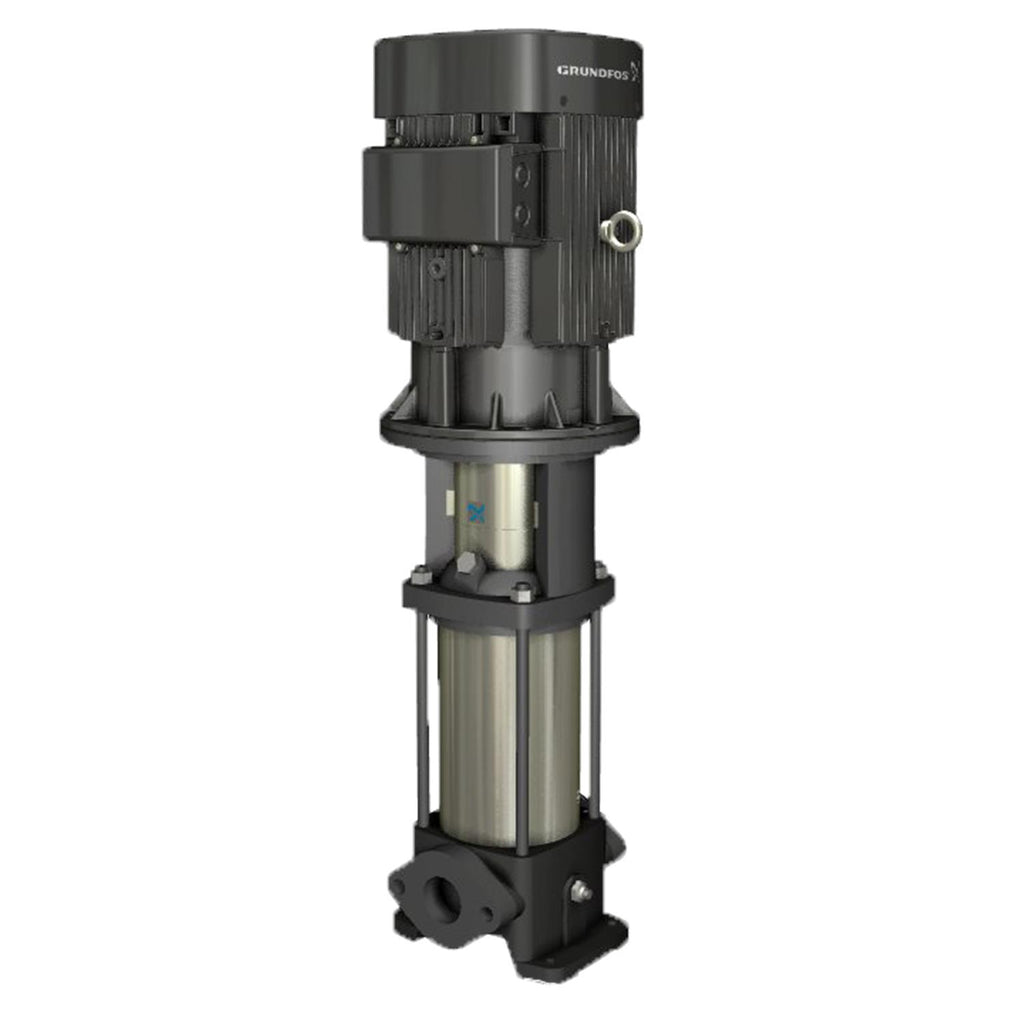

Grundfos 98159973 - CR 1S-2 A-A-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $934.56
GRUNDFOSSKU: 98159973

Price:
Sale price$1,012.44 Regular price$1,947.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98159973 - CR 1S-2 A-A-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

This model is part of the CR series, known for its versatility and robust construction. It is ideal for high-pressure applications and is suitable for both water supply and industrial processes. The CR 1S-2 A-A-A-V-HQQV features a compact design, making it easy to install in tight spaces while ensuring optimal performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore the reliability and efficiency of the Grundfos 98159973 - CR 1S-2 A-A-A-V-HQQV and experience the quality that comes with Grundfos products.

EAN 5711494592906
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 46.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 40.36 ft
Maximum operating pressure 16 bar
Model A
Motor FT85
Motor standard IEC
Net weight 40.3 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 2873 rpm
Pump version A
Pumped liquid Water
Rated flow 3.96 US gpm
Rated head 28.54 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 3
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

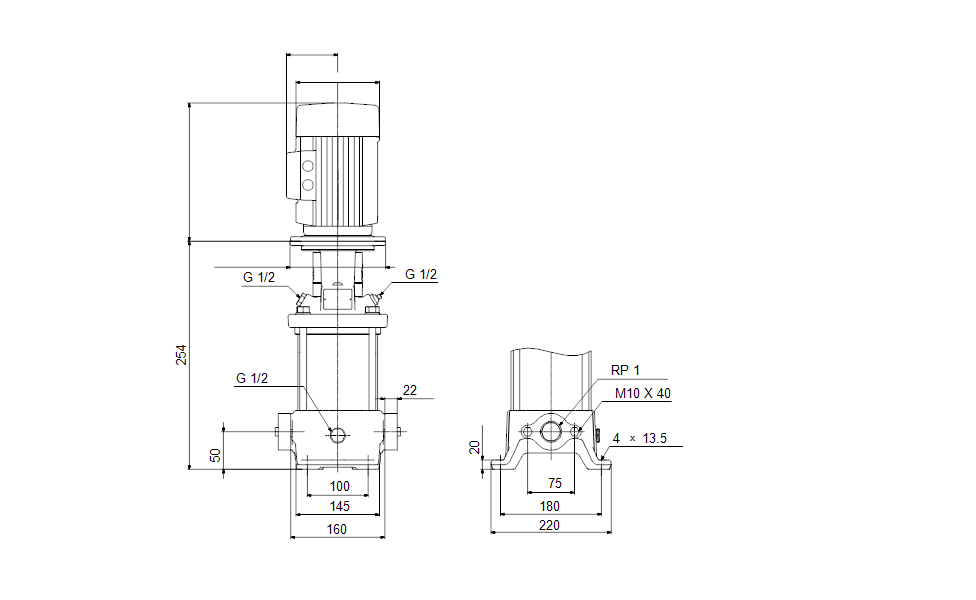

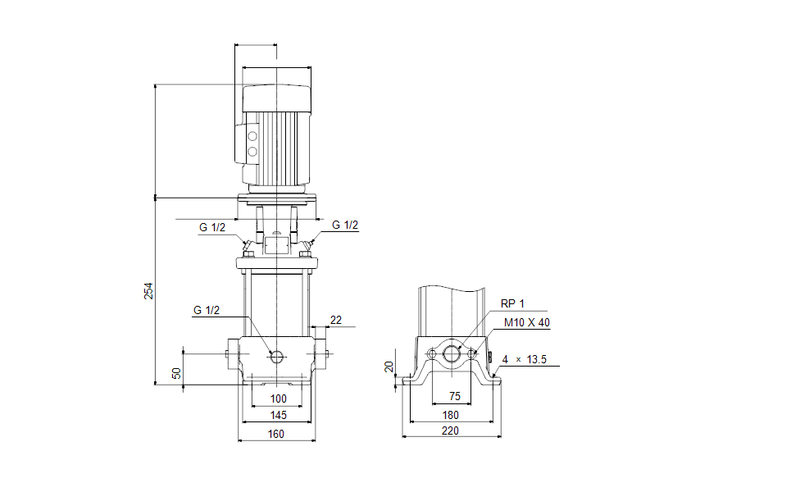

Dimensional Drawing
