Grundfos 96081020 - CR 1S-2 A-FGJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

This item ships free!
GRUNDFOSSKU: 96081020

Price:
Sale price$2,611.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

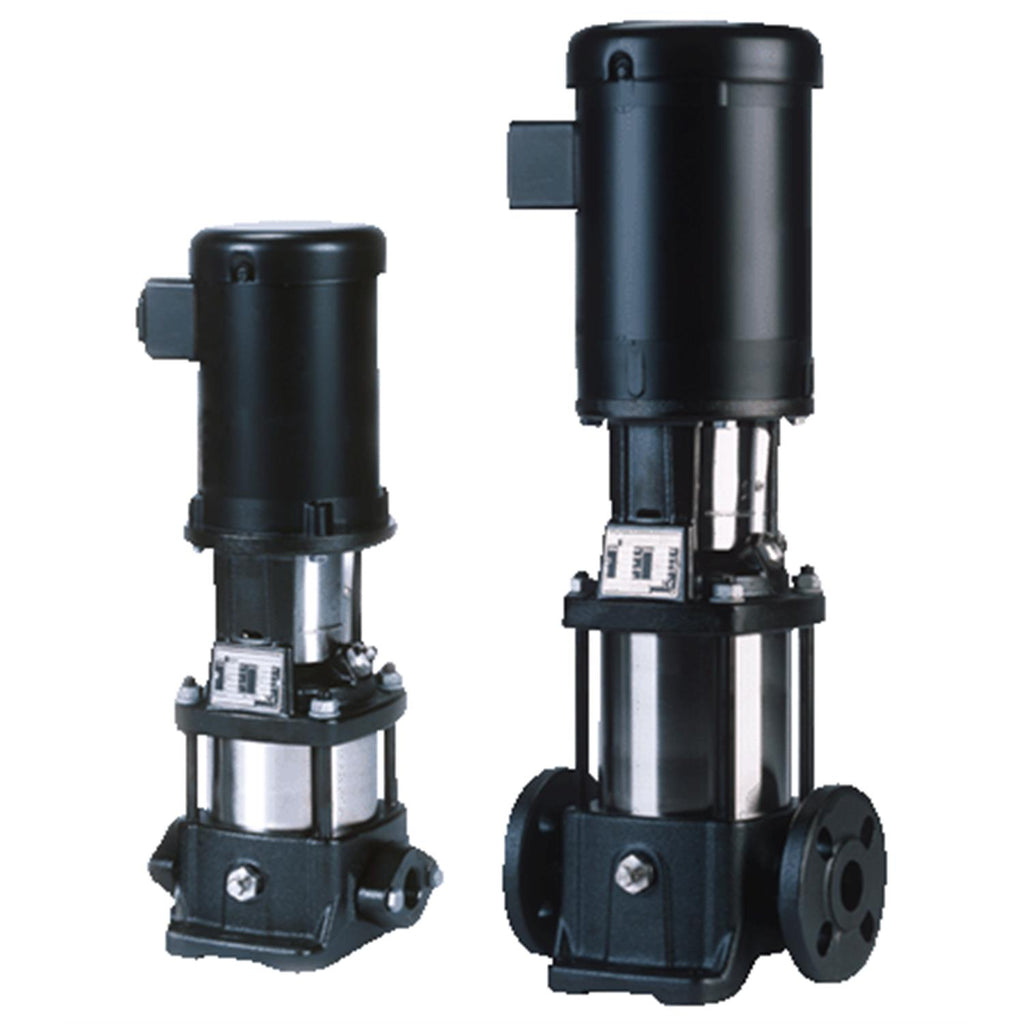

CR 1S-2 A-FGJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

EAN 5700395154771
Applications Industrial applications
Density 62.29 lb/ft³
Gross weight 68.8 lb
Liquid temperature range -4 .. 248 °F
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Max. capacity 2 ,
Maximum ambient temperature 104 °F
Maximum head 56.76 ft
Net weight 57.8 lb
Product family CR 1-S
Rated flow 4.84 US gpm
Rated head 41.34 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F

Motor Curves

Dimensional Drawing

DWiring Diagram
