Grundfos 97533315 - CR 1S-13 H | Horizontal | End Suction

GrundfosSKU: 97533315

Price:
Sale price$3,750.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 1S-13 H · Vertical Multistage Centrifugal Pump
CR60 HzStainless steel

The Grundfos 97533315 (CR 1S-13 H) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 4.84US gpm at 243.8ft.

Max Flow
4.84US gpm
Max Head
243.8ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 1S-13 H
Series: CR
Model Code: CR 1S-13 H
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQV
Technical Specifications
Model Number 97533315
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Frequency 60 Hz
Pump Speed 3484rpm
Nominal Flow 4.84US gpm
Nominal Head 243.8ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 194°F
Inlet Connection 1.5inch
Outlet Connection 1.0inch
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQV
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature 194°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 1S-13 H
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700317946163
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection 1.0 inch
Density 62.29 lb/ft³
Flange size for motor 56C
Gross weight 80.9 lb
Impeller Stainless steel
Impellers 13
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Model A
Motor 56C
Net weight 53.8 lb
Pump speed on which pump data are based 3484 rpm
Pump version H
Pumped liquid Water
Rated flow 4.84 US gpm
Rated head 243.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Sales region USA
Selected liquid temperature 68 °F
Size of inlet connection 1.5 inch
Size of outlet connection 1.0 inch
Stages 13
Version H

Motor Curves

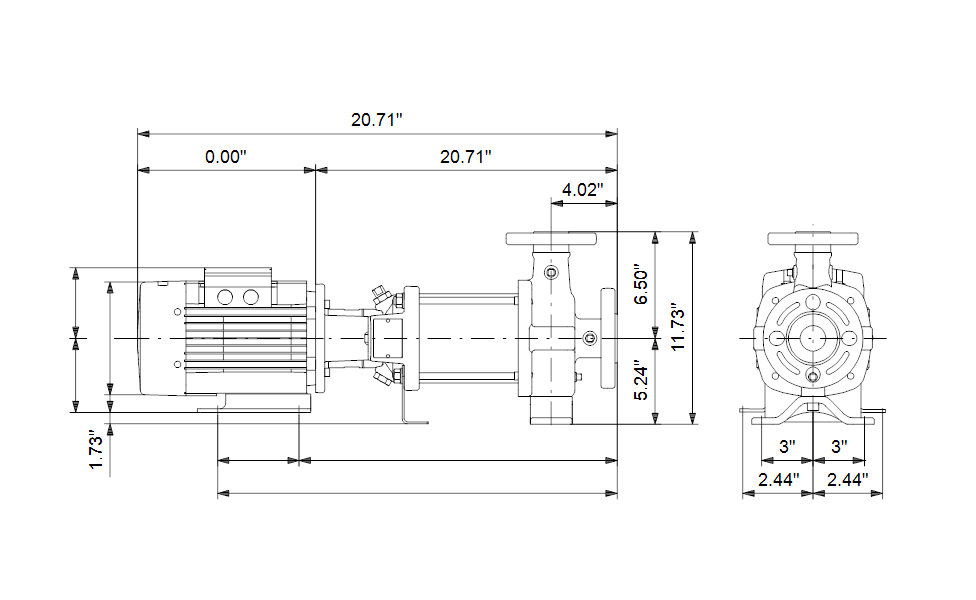

Dimensional Drawing
