Grundfos 96541010 - CR 1S-13 A-A-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96541010

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CR 1S-13 A-A-A-E-HQQE is a vertical, inline multistage centrifugal pump designed for compact installations where high pressure and reliable flow are required. Operators in commercial HVAC, water pressure boosting, and light industrial process settings commonly use this style.

Key features

  • Vertical, multistage inline configuration for space-saving, high-head operation
  • Pump head and base in cast iron with stainless steel wetted parts for corrosion resistance
  • Rigid split coupling for straightforward power transmission and simplified maintenance

Applications

Suitable for water pressure boosting, boiler feed, industrial circulation, HVAC systems, and other high-pressure inline applications where multistage performance is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96541010

EAN 5700397817919
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 43.7 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 369.4 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.54
Model A
Motor FT100
Motor standard IEC
Net weight 37.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3474 rpm
Pump version A
Pumped liquid Water
Rated flow 4.84 US gpm
Rated head 281.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 13
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

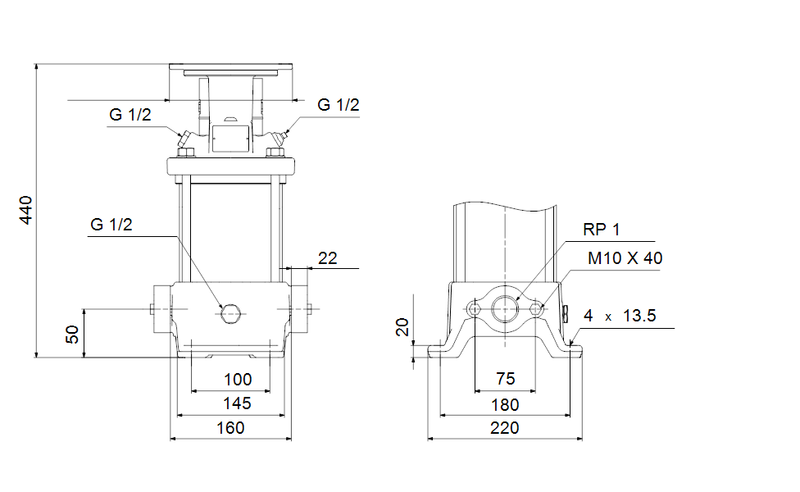

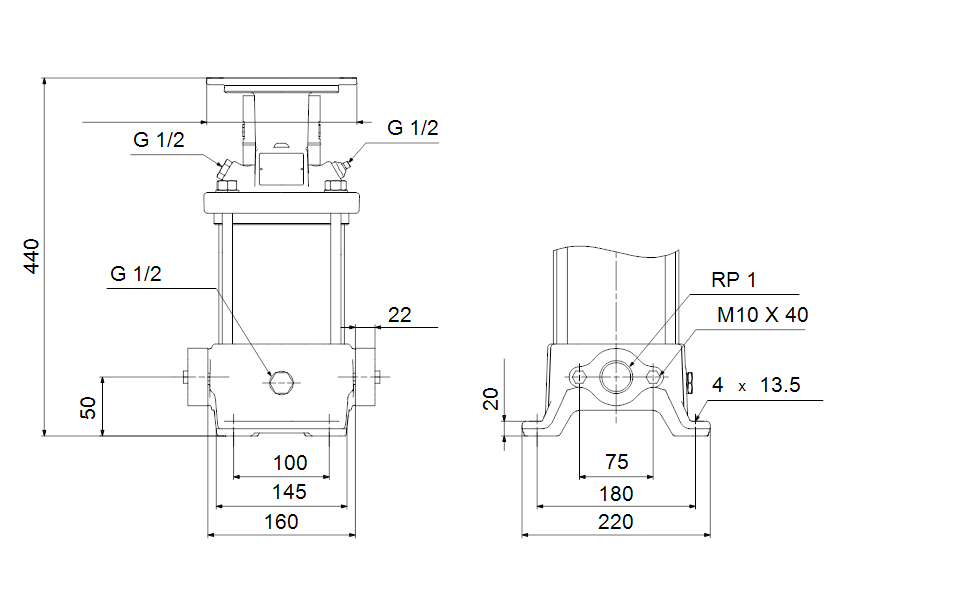

Dimensional Drawing
