Grundfos 98159992 - CR 1S-12 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,521.12
GRUNDFOSSKU: 98159992

Price:
Sale price$1,647.88 Regular price$3,169.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98159992 - CR 1S-12 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98159992 - CR 1S-12 A-A-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

This model is part of the CR series, known for its versatility and durability. It is suitable for various service applications, including water supply, pressure boosting, and industrial processes. The CR 1S-12 features a compact design, allowing for easy installation in tight spaces.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5711494593392
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 54.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 230 ft
Maximum operating pressure 16 bar
Model A
Motor FT85
Motor standard IEC
Net weight 48.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 2873 rpm
Pump version A
Pumped liquid Water
Rated flow 3.96 US gpm
Rated head 154.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 12
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

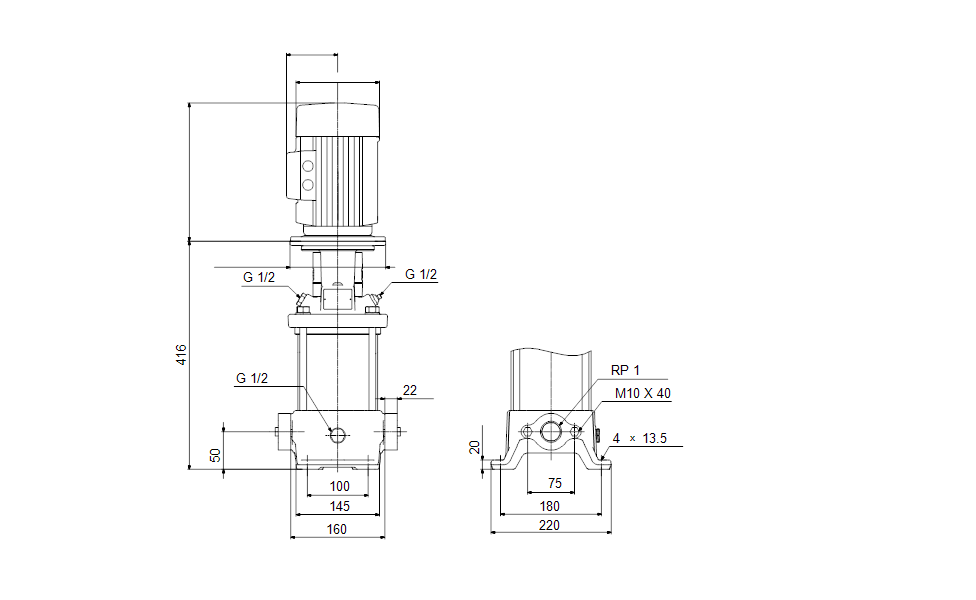

Dimensional Drawing
