Grundfos 97533313 - CR 1S-11 H | Horizontal | End Suction

Save $1,380.48
GRUNDFOSSKU: 97533313

Price:
Sale price$1,495.52 Regular price$2,876.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 1S-11 H | CR-H pumps are horizontal end suction pumps typically mounted on baseplates. The end suction design enables the pump to be installed horizontally in traditional, end suction design piping where the pump has an axial suction port and a radial center line discharge port. This design allows “back pull-out” capability. This means the pump usually can be easily serviced without removing the volute from the pipe system. CR-H pumps can be selected that meet ASME B73. 1 dimensional standards for suction and discharge piping as well as many of the baseplate dimensional standards. CR-H pumps do not fully comply with the ASME B73. 1 specification.

EAN 5700317946125
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection 1.0 inch
Density 62.29 lb/ft³
Flange size for motor 56C
Gross weight 77.1 lb
Impeller Stainless steel
Impellers 11
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Model A
Motor 56C
Net weight 50.0 lb
Pump speed on which pump data are based 3439 rpm
Pump version H
Pumped liquid Water
Rated flow 4.84 US gpm
Rated head 200.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Sales region USA
Selected liquid temperature 68 °F
Size of inlet connection 1.5 inch
Size of outlet connection 1.0 inch
Stages 11
Version H

Motor Curves

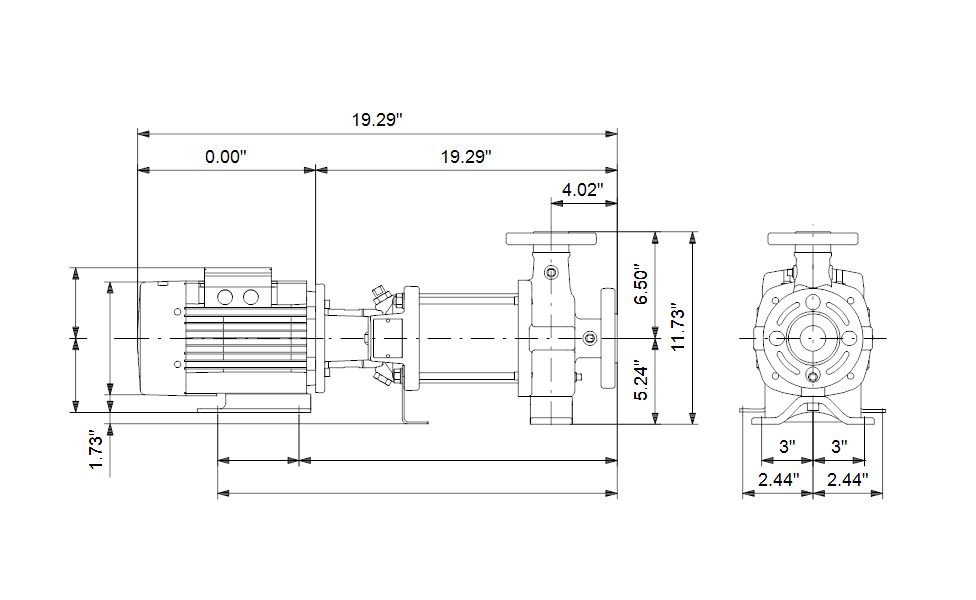

Dimensional Drawing
