Grundfos 98159991 - CR 1S-11 A-A-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,506.24
GRUNDFOSSKU: 98159991

Price:
Sale price$1,631.76 Regular price$3,138.00
or Call for most up to date lead times. (781) 281-8905

Description

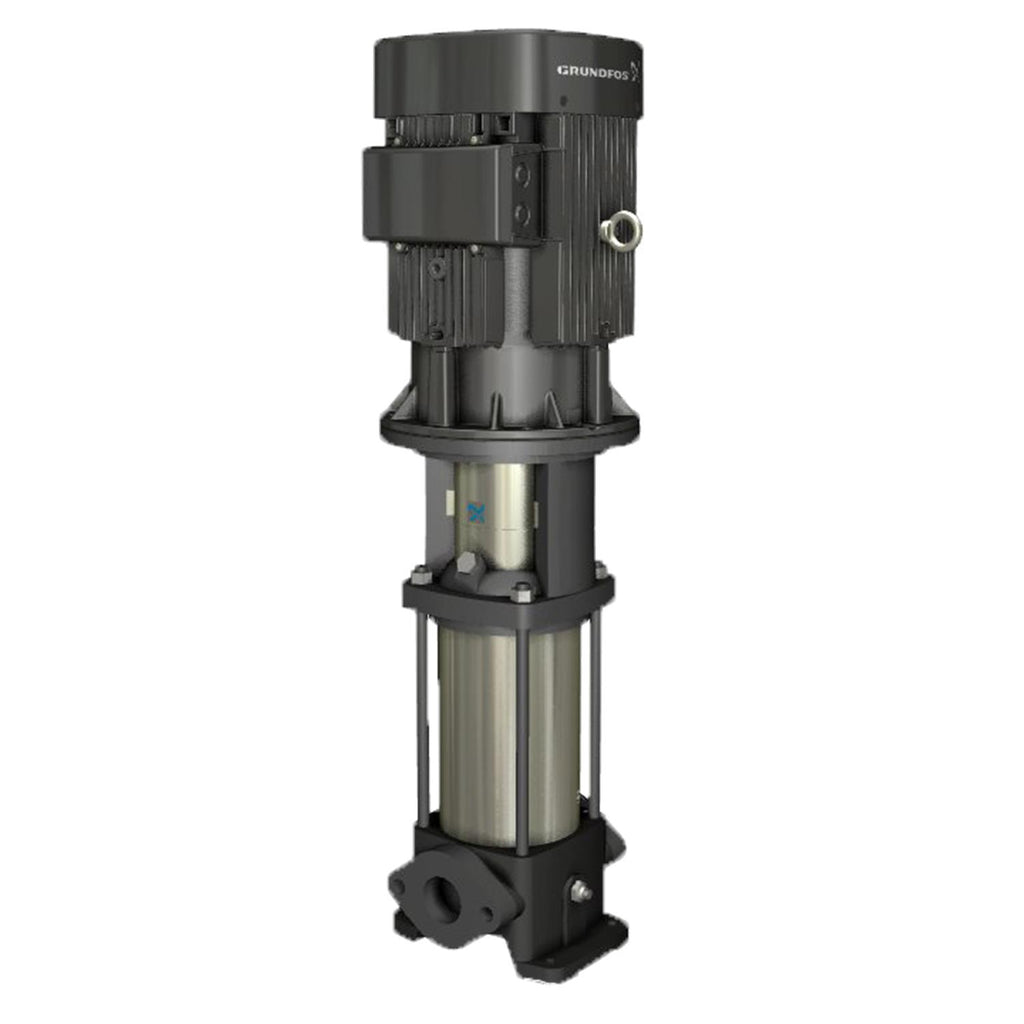

Grundfos 98159991 - CR 1S-11 A-A-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98159991 - CR 1S-11 A-A-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model is part of the CR series, known for its versatility and durability. It is ideal for high-pressure applications and is suitable for both single and multi-stage configurations. The CR 1S-11 A-A-A-V-HQQV is specifically tagged as a Service Special, making it a perfect choice for those seeking a dependable solution for their pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711494593385
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 53.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 211.6 ft
Maximum operating pressure 16 bar
Model A
Motor FT85
Motor standard IEC
Net weight 47.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 2873 rpm
Pump version A
Pumped liquid Water
Rated flow 3.96 US gpm
Rated head 142.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 11
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

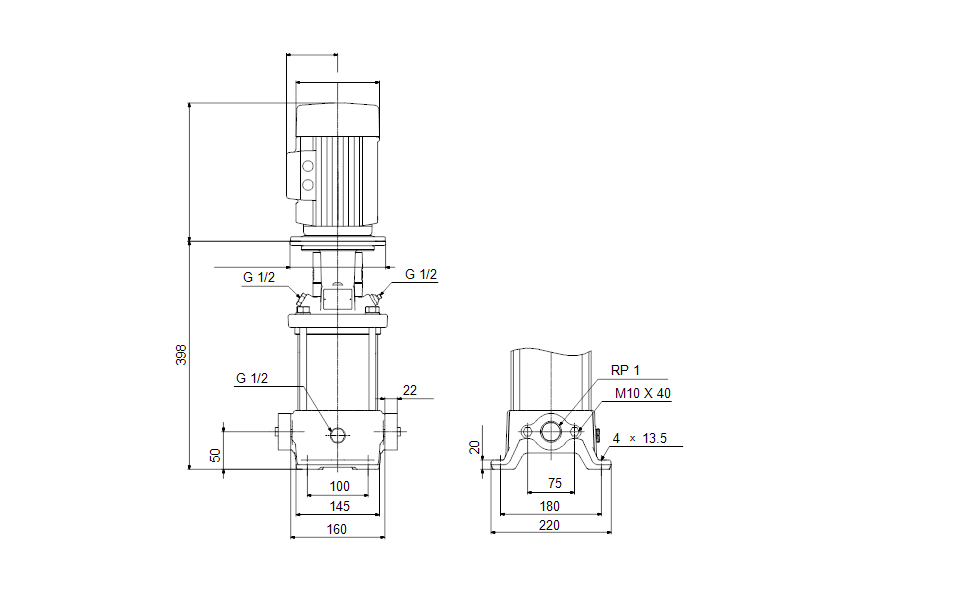

Dimensional Drawing
