Grundfos 96541008 - CR 1S-11 A-A-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96541008

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CR 1S-11 A-A-A-E-HQQE is a vertical, inline multistage centrifugal pump designed for high-pressure fluid handling where compact vertical installation is required; typical users include contractors and facility maintenance teams needing reliable pressure boosting and circulation solutions.

Key features

  • Vertical, inline multistage centrifugal design for compact, high-pressure operation
  • Cast iron pump head and base with stainless steel wetted parts for corrosion resistance
  • Rigid split coupling for straightforward power transmission and simplified maintenance

Applications

Suitable for pressure boosting, boiler feed, HVAC circulation, water treatment, and other industrial or commercial applications requiring a vertical multistage inline pump.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96541008

EAN 5700397817896
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 41.9 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 314.3 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.54
Model A
Motor FT100
Motor standard IEC
Net weight 36.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3474 rpm
Pump version A
Pumped liquid Water
Rated flow 4.84 US gpm
Rated head 241.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 11
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

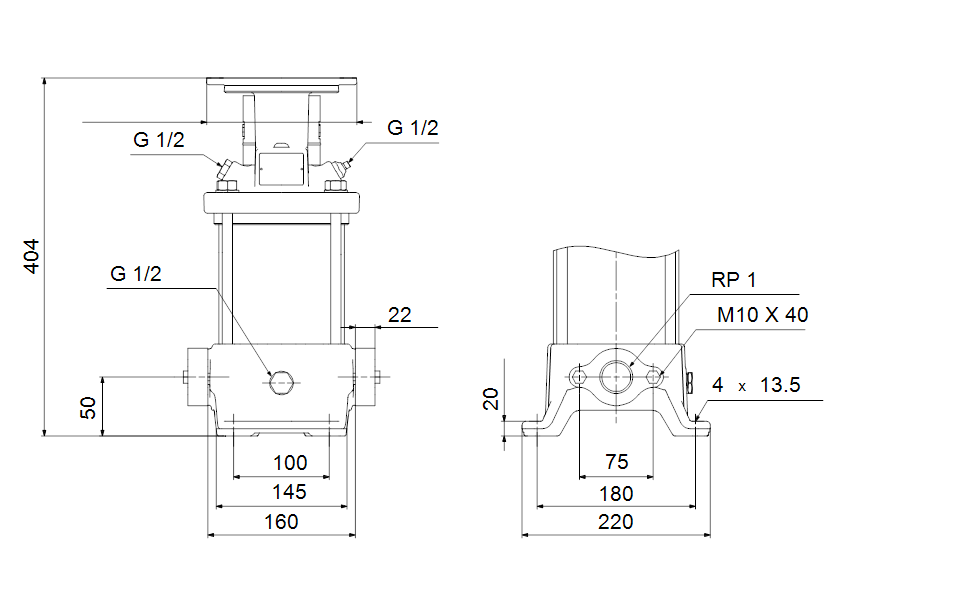

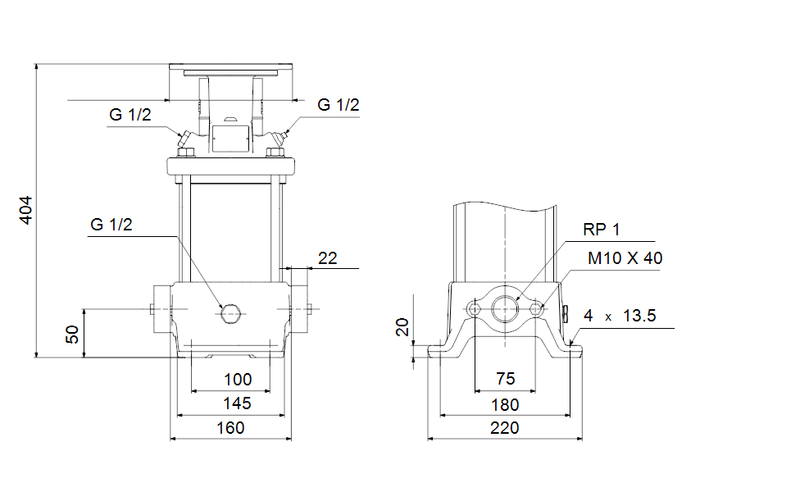

Dimensional Drawing
