Grundfos 98830156 - CR 15-9 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98830156

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98830156 CR 15-9 A-F-A-E-HQQE is a vertical, multistage centrifugal pump suitable for industrial high-pressure inline systems and service-repair applications. It is specified for technicians and maintenance teams replacing or servicing Grundfos centrifugal units.

Key features

  • Designed as a vertical multistage centrifugal unit for compact, high-head installations
  • Tagged for high-pressure, inline and vertical multistage service applications
  • Provides reliable pressure development and smooth flow for repeatable system performance

Applications

Commonly used in industrial water boosting, boiler feed, pressure boosting, and other high-pressure inline pumping systems where a compact vertical multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98830156

EAN 5712602015126
Actual impeller diameter 4.13 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 284.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 416.7 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 90.8-90.4 %
Motor efficiency at 3/4 load 90.8-90.9 %
Motor efficiency at full load 1 90.1-90.4 %
Motor standard IEC
Motor type 132EA
Net weight 236.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.88-0.82
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 25
Rated flow 74.8 US gpm
Rated head 330.1 ft
Rated power - P2 7.5 kW
Rated speed 2910-2920 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 9
Standard IEC
Starting current 780-910 %
Type 132EA
Type of connection DIN
Version A

Motor Curves

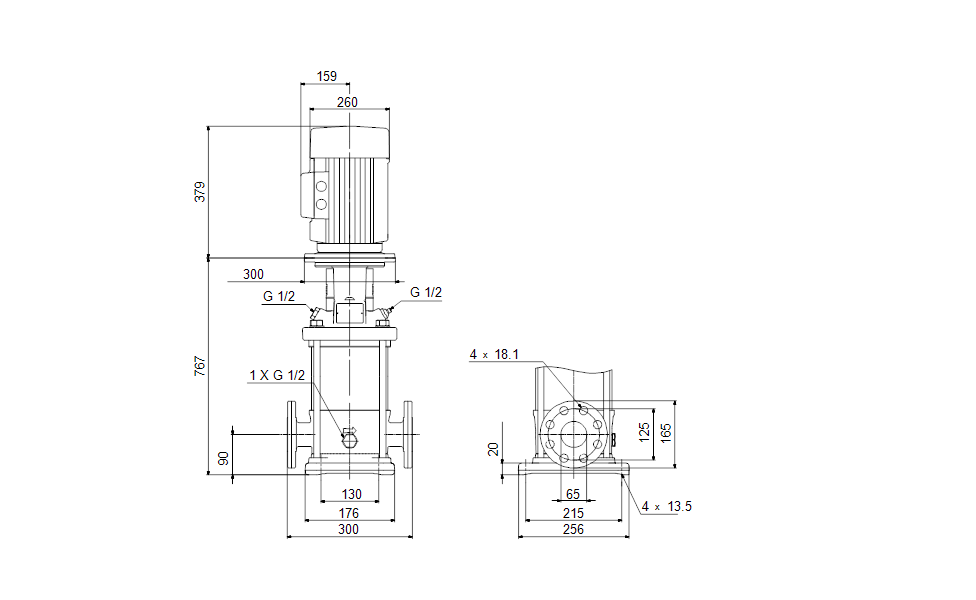

Dimensional Drawing

DWiring Diagram
