Grundfos 97664950 - CR 15-8 BK-GJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97664950

Price:
Sale price$10,676.39
or Call for most up to date lead times. (781) 281-8905

Description

CR 15-8 BK-GJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges.

EAN 5710620704268
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 229.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum head 551.9 ft
Maximum operating pressure 16 bar
Model A
Motor 284TC
Motor standard NEMA
Net weight 115.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3509 rpm
Pump version BK
Rated flow 90.3 US gpm
Rated head 453.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Type of connection ANSI / JIS
Version BK

Motor Curves

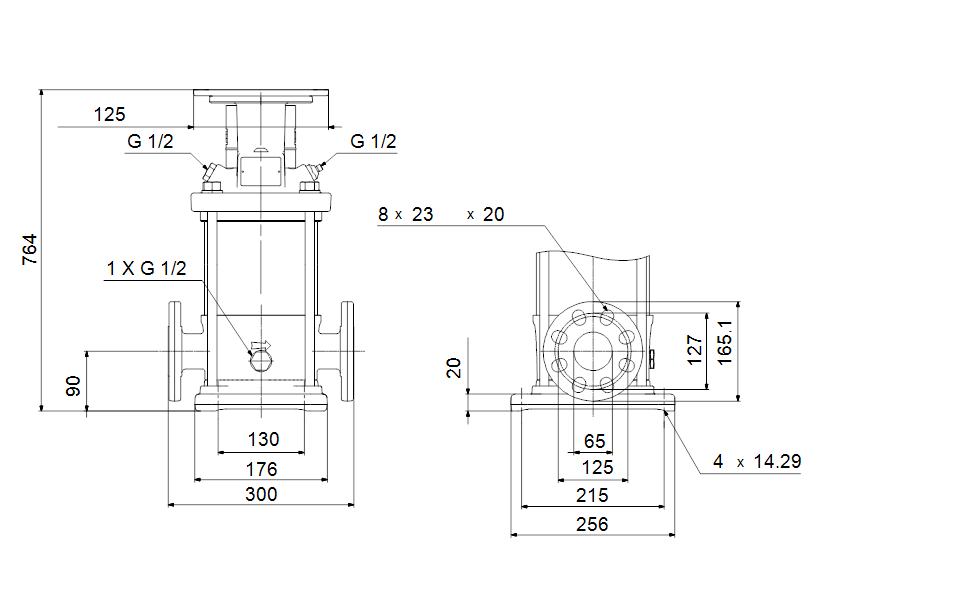

Dimensional Drawing
